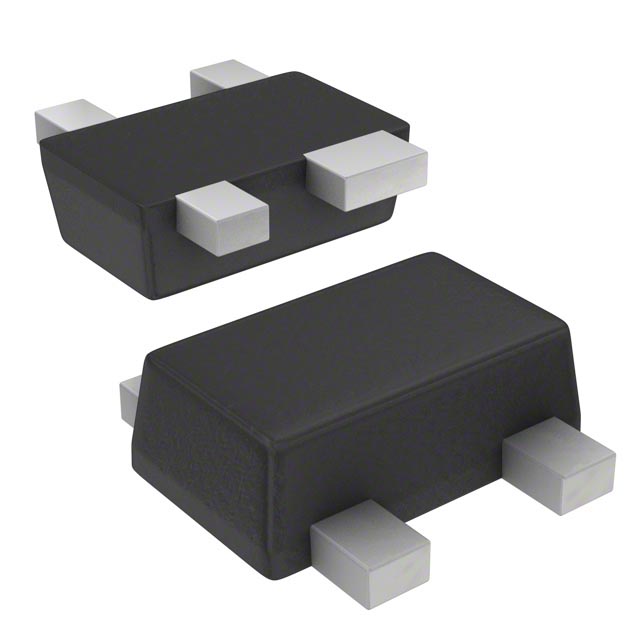

NE677M04-A
ObsoleteCEL
RF TRANS NPN 6V 15GHZ SOT343F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NE677M04-A
ObsoleteCEL
RF TRANS NPN 6V 15GHZ SOT343F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NE677M04-A |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 50 mA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 75 |
| Frequency - Transition | 15 GHz |
| Gain | 16 dB |
| Mounting Type | Surface Mount |
| Noise Figure (dB Typ @ f) | 1.7 dB |
| Operating Temperature | 150 °C |
| Package / Case | SOT-343F |
| Power - Max [Max] | 205 mW |
| Supplier Device Package | SOT-343F |
| Transistor Type | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NE677M04-A
RF Transistor NPN 6V 50mA 15GHz 205mW Surface Mount SOT-343F
Documents
Technical documentation and resources
