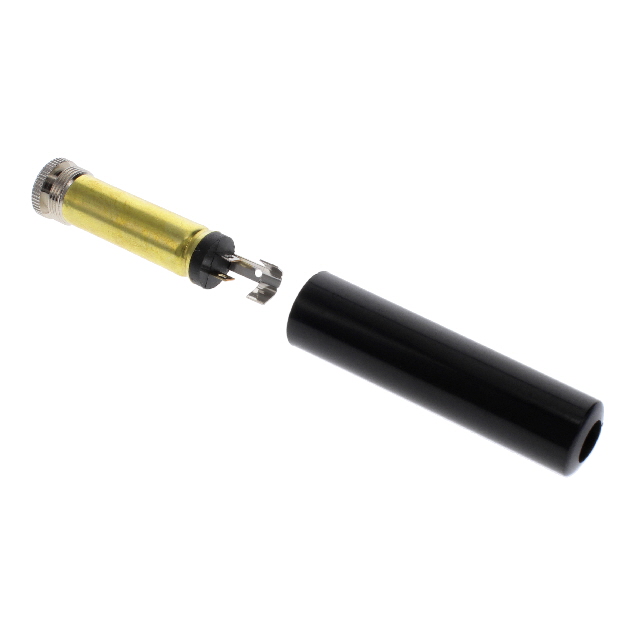

SR-6330A
ActiveCUI Devices
AUDIO JACK, 6.3 MM, STRAIGHT, 3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SR-6330A
ActiveCUI Devices
AUDIO JACK, 6.3 MM, STRAIGHT, 3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SR-6330A |
|---|---|
| Actual Diameter [diameter] | 6.43 mm |
| Actual Diameter [diameter] | 0.253 " |
| Body Color | Silver, Black |
| Body Material | Brass |
| Cable Opening [diameter] | 8 mm |
| Cable Opening [diameter] | 0.315 in |
| Connector Type | Phone Jack |
| Contact Material | Brass, Phosphor Bronze |
| Contact Material - Plating [custom] | Gold |
| Current Rating (Amps) | 1 A |
| Features | Cover |
| Gender | Female |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) |
| Includes | 1 Connector, 1 Cover |
| Insulation Color | Black |
| Internal Switch(s) | False |
| Mating Length/Depth | 31 mm |
| Mating Length/Depth | 1.22 in |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions/Contacts [custom] | 3 |
| Number of Positions/Contacts [custom] | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Signal Lines | Stereo |
| Termination | Solder |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.94 | |
| 10 | $ 2.67 | |||
| 25 | $ 2.53 | |||
| 50 | $ 2.47 | |||
| 100 | $ 2.35 | |||
| 250 | $ 2.06 | |||
| 500 | $ 2.00 | |||
| 1000 | $ 1.70 | |||
| 2500 | $ 1.59 | |||
Description
General part information
SR-6330A
6.35mm (0.250", 1/4") - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
