FL-B101Q-DCA
ActiveTexmate
50-100MV SHUNT BARGRAPH CONTROLL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FL-B101Q-DCA
ActiveTexmate
50-100MV SHUNT BARGRAPH CONTROLL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FL-B101Q-DCA |
|---|---|
| Display Type | LED - Red Bar Graph |
| Measuring Range [Max] | 0.2 VDC |
| Measuring Range [Min] | 0.02 VDC |
| Measuring Type | Current |
| Output Type | Relay (2), Analog |
| Panel Cutout Dimensions [x] | 144.53 mm |
| Panel Cutout Dimensions [y] | 36.07 mm |
| Termination Style | Screw Terminal |
| Type | Ammeter |
| Voltage - Supply [Max] | 265 VAC, 300 VDC |
| Voltage - Supply [Min] | 95 VDC, 85 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 676.00 | |
Description
General part information
FL-B101Q-DCA

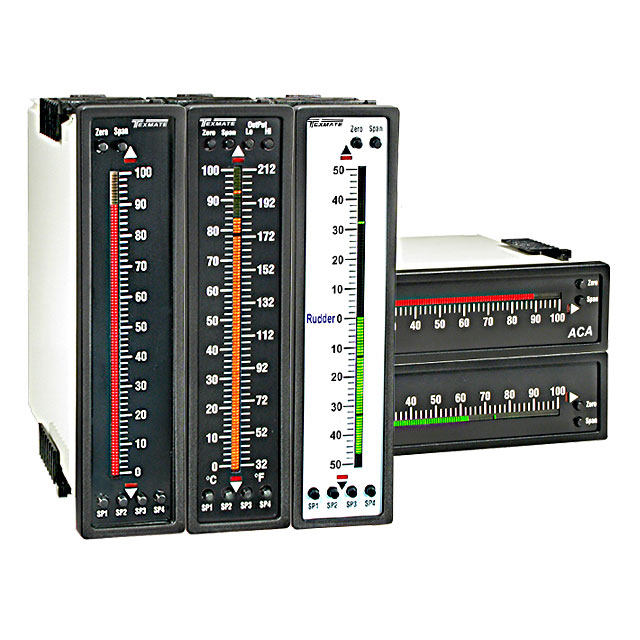

Ammeter LED - Red Bar Graph Display Panel Mount
