SMH25-06WL
ActiveJAM
2.5 MM W TO B CONNECTOR 6P HEADE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMH25-06WL
ActiveJAM
2.5 MM W TO B CONNECTOR 6P HEADE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMH25-06WL |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | 3 A |
| Fastening Type | Locking Ramp |
| Insulation Color | White |
| Insulation Height | 6.5 mm |
| Insulation Height | 0.256 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.13 | |
| 2000 | $ 0.12 | |||
| 3000 | $ 0.12 | |||
| 5000 | $ 0.11 | |||
| 7000 | $ 0.11 | |||
| 10000 | $ 0.10 | |||
| 25000 | $ 0.10 | |||
| 50000 | $ 0.09 | |||
| 100000 | $ 0.09 | |||
Description
General part information

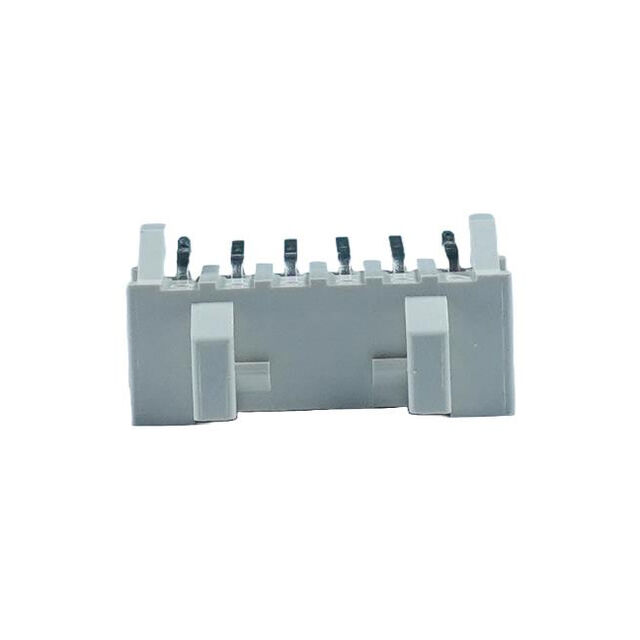

SMH25-06WL
Connector Header Through Hole, Right Angle 6 position 0.098" (2.50mm)
Documents
Technical documentation and resources
