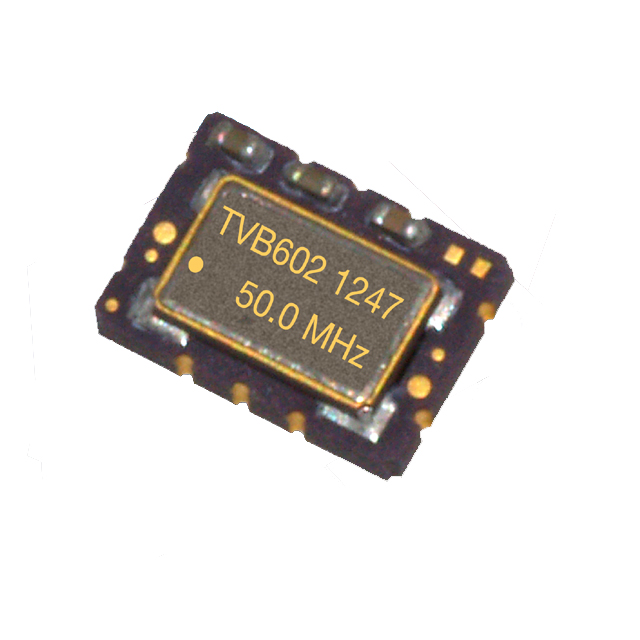

TVB602-050.0M
ActiveConnor Winfield
XTAL OSC TCXO 50.0000MHZ LVCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TVB602-050.0M
ActiveConnor Winfield
XTAL OSC TCXO 50.0000MHZ LVCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TVB602-050.0M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 6 mA |
| Frequency | 50 MHz |
| Frequency Stability | 280 ppb |
| Height - Seated (Max) [Max] [z] | 2 mm |
| Height - Seated (Max) [Max] [z] | 0.079 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 55 | $ 34.29 | |
Description
General part information
TVB602-050.0M
50 MHz TCXO LVCMOS Oscillator 3.3V 4-SMD, No Lead
