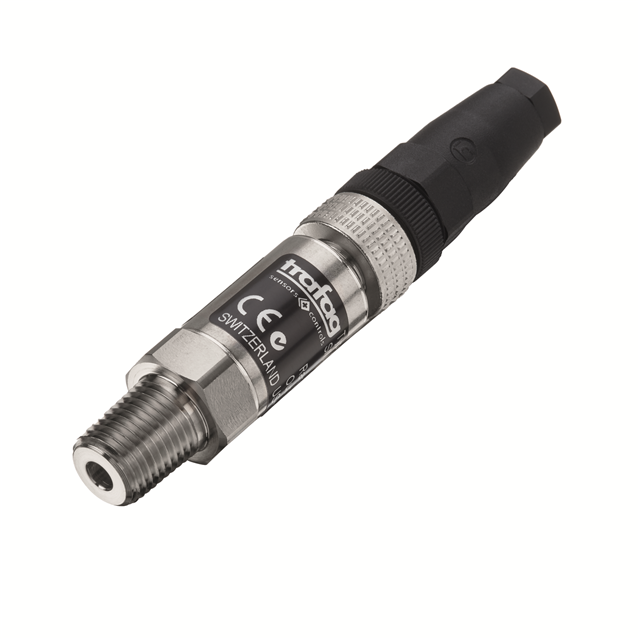

8252.G4.2530.32.19.33
ActiveTrafag Sensors and Controls
SENSOR 3000PSIG 1/4"NPT .02A
Deep-Dive with AI
Search across all available documentation for this part.
8252.G4.2530.32.19.33
ActiveTrafag Sensors and Controls
SENSOR 3000PSIG 1/4"NPT .02A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8252.G4.2530.32.19.33 |
|---|---|
| Accuracy | 0.5 % |
| Maximum Pressure [Max] | 9000 PSI |
| Maximum Pressure [Max] | 62052.82 kPa |
| Operating Pressure [x] | 20684.27 kPa |
| Operating Pressure [x] | 3000 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 20 mA |
| Output [Min] | 4 mA |
| Output Type | Analog Current |
| Package / Case | Cylinder, Threaded |
| Port Size [custom] | NPT |
| Port Size [custom] | Male |
| Port Size [x] | 0.25 " |
| Port Size [x] | 6.35 mm |
| Port Style | Threaded |
| Pressure Type | Gauge |
| Termination Style | M12x1, 4 Pin |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 157.83 | |
| 6 | $ 153.10 | |||
| 11 | $ 134.16 | |||
Description
General part information
8252.G4.2530.32.19.33
Pressure Sensor 3000PSI (20684.27kPa) Gauge Male - 1/4" (6.35mm) NPT 4 mA ~ 20 mA Cylinder, Threaded
Documents
Technical documentation and resources
No documents available
