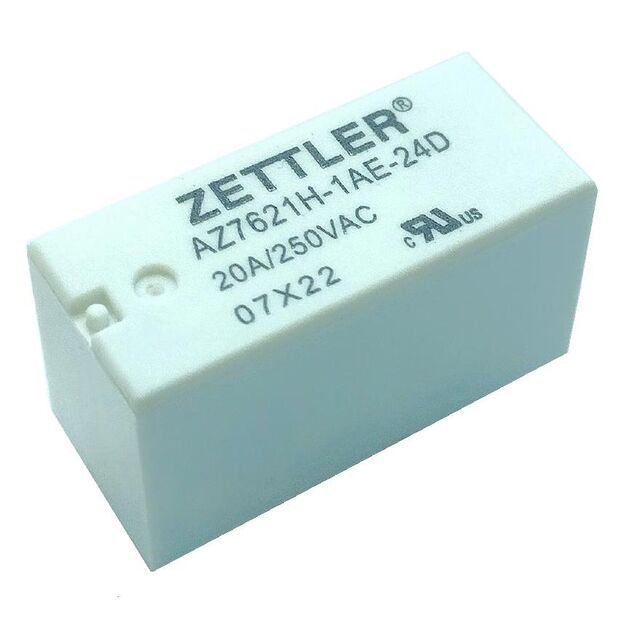

AZ7621H-1AET-24DE
ActiveAmerican Zettler
20 AMP MINIATURE POWER RELAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AZ7621H-1AET-24DE
ActiveAmerican Zettler
20 AMP MINIATURE POWER RELAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AZ7621H-1AET-24DE |
|---|---|
| Coil Current | 17.1 mA |
| Coil Insulation | Class F |
| Coil Resistance | 1.405 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 25 A |
| Load - Max Switching | 6250 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage | 440 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.01 | |
| 10 | $ 1.89 | |||
| 25 | $ 1.68 | |||
| 40 | $ 1.59 | |||
| 80 | $ 1.51 | |||
| 230 | $ 1.34 | |||
| 440 | $ 1.26 | |||
| 945 | $ 1.17 | |||
| 4900 | $ 1.13 | |||
Description
General part information
AZ7621H-1AET-24DE
General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole
