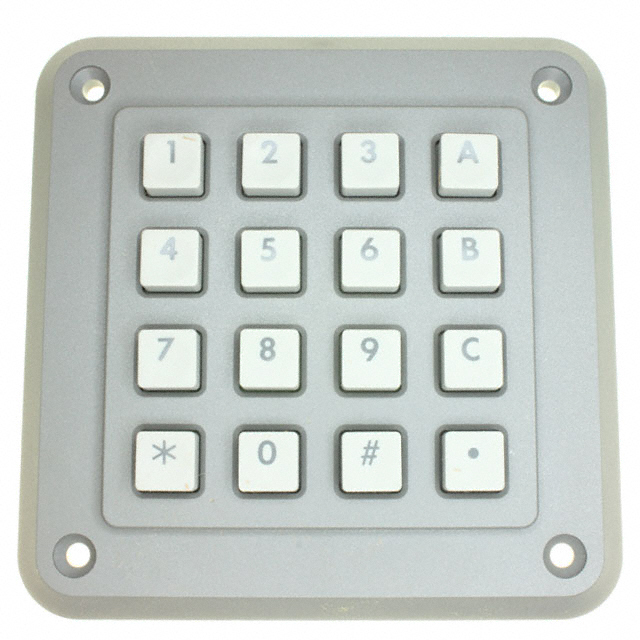

4K16T103
ObsoleteSTORM INTERFACE
SWITCH KEYPAD 16KEY 0.05A 24V
Deep-Dive with AI
Search across all available documentation for this part.
4K16T103
ObsoleteSTORM INTERFACE
SWITCH KEYPAD 16KEY 0.05A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4K16T103 |
|---|---|
| Approval Agency | CE |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Illumination | Non-Illuminated |
| Key Color | White |
| Key Type | Polymer |
| Legend | Telephone Format, A ~ C |
| Legend Type | Fixed |
| Matrix (Columns x Rows) [custom] | 4 |
| Matrix (Columns x Rows) [custom] | 4 |
| Mounting Type | Panel Mount, Front or Rear |
| Number of Keys | 16 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Operational Life | 1000000 Cycles |
| Output Type | 1.81 mOhm |
| Panel Cutout Dimensions | 83 mm² |
| Switch Type | Conductive Rubber |
| Termination Style | Pin Header |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
4K16T103
Keypad Switch 16 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.05A @ 24VDC
