GW SBLMA2.EM-HQHR-XX37-L1L2-65-R18-XX

Obsolete

ams-OSRAM USA INC.

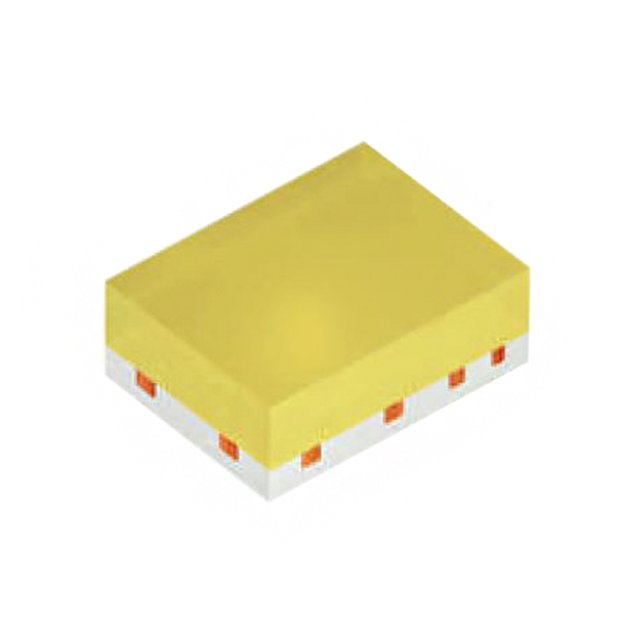

LED DURIS S2 WARM WHT 3000K SMD

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED DURIS S2 WARM WHT 3000K SMD

Technical Specifications

Parameters and characteristics for this part

Specification	GW SBLMA2.EM-HQHR-XX37-L1L2-65-R18-XX

Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	150 mA
Current - Test	65 mA
Height - Seated (Max) [Max] [z]	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "
Lumens/Watt @ Current - Test	175 lm/W
Mounting Type	Surface Mount
Package / Case	0806 (2016 Metric)
Size / Dimension [x]	2.05 mm
Size / Dimension [x]	0.081 in
Size / Dimension [y]	0.061 in
Size / Dimension [y]	1.55 mm
Supplier Device Package	SMD
Thermal Resistance of Package [custom]	30 °C/W
Viewing Angle	150 °
Voltage - Forward (Vf) (Typ)	2.9 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting DURIS® S 2 White, Warm 3000K 2.9V 65mA 150° 0806 (2016 Metric)

Technical documentation and resources
