OPB746WZ
ObsoleteTT Electronics/Optek Technology
SNSR OPTO TRANS 7.62MM REFL C-MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OPB746WZ
ObsoleteTT Electronics/Optek Technology
SNSR OPTO TRANS 7.62MM REFL C-MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB746WZ |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 40 mA |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Transistor, Base-Emitter Resistor |
| Package / Case | Module, Pre-Wired |
| Sensing Distance | 0.3 in |
| Sensing Distance | 7.62 mm |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
OPB746WZ

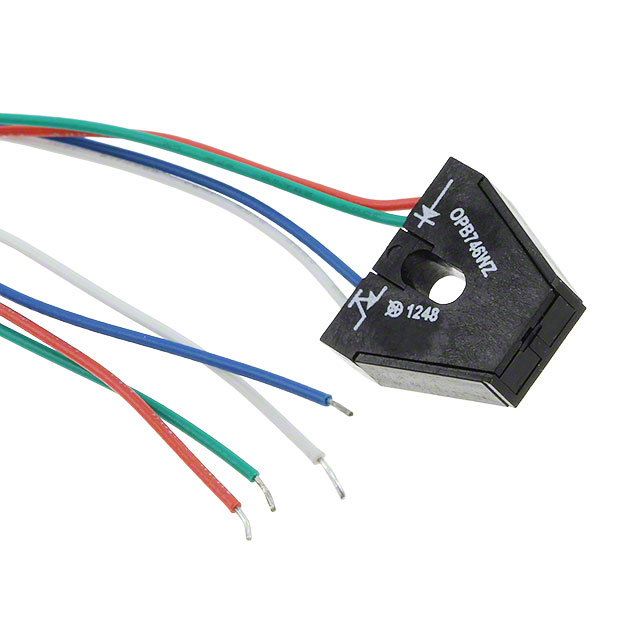

Reflective Optical Sensor 0.300" (7.62mm) Module, Pre-Wired
Documents
Technical documentation and resources
