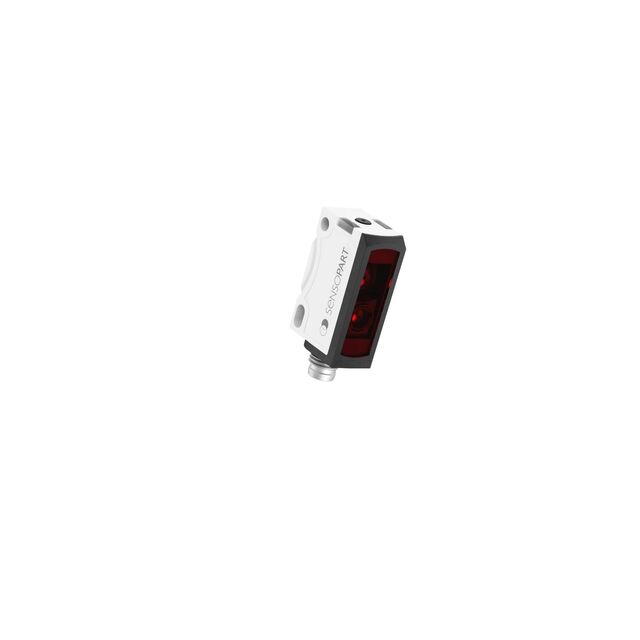

607-21007 - FT 25-R-NS-M4M
ActiveSensoPart
DIFFUSE PHOTOELECTRIC PROXIMITY
Deep-Dive with AI
Search across all available documentation for this part.
607-21007 - FT 25-R-NS-M4M
ActiveSensoPart
DIFFUSE PHOTOELECTRIC PROXIMITY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 607-21007 - FT 25-R-NS-M4M |
|---|---|
| Adjustment Type | Teaching Method |
| Connection Method | Connector, M8 |
| Ingress Protection | IP69K |
| Light Source | 632 nm |
| Light Source | Red |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Output Configuration | NPN |
| Response Time | 500 µs |
| Sensing Distance | 800 mm |
| Sensing Distance | 31.496 " |
| Sensing Method | Proximity |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 158.00 | |
Description
General part information
607-21007 - FT 25-R-NS-M4M
Proximity Optical Sensor 31.496" (800mm) NPN
Documents
Technical documentation and resources
No documents available
