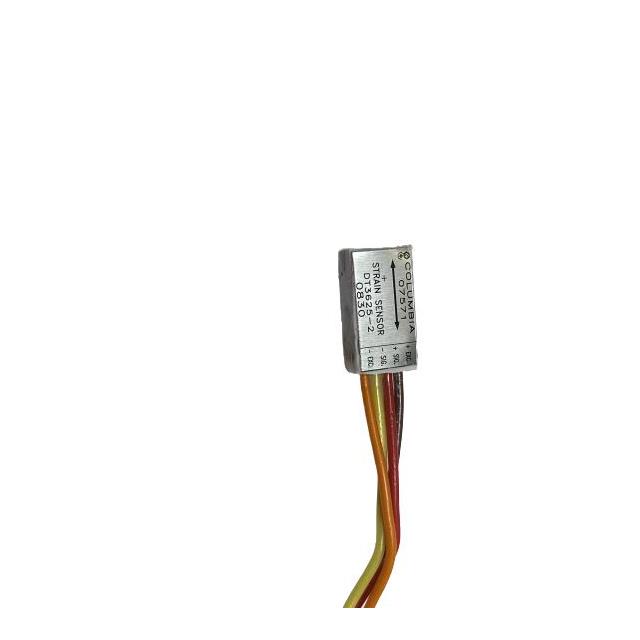

DT 3625-2
ActiveColumbia Research Laboratories Inc
STRAIN SENSOR/MINATURE SIZE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DT 3625-2
ActiveColumbia Research Laboratories Inc
STRAIN SENSOR/MINATURE SIZE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DT 3625-2 |
|---|---|
| Length - Overall [x] | 0.45 in |
| Length - Overall [x] | 11.4 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pattern Type | Rectangular Rosette |
| Resistance | 1000 Ohms |
| Resistance Tolerance | 2 % |
| Width - Overall [y] | 0.25 " |
| Width - Overall [y] | 6.35 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DT 3625-2
Rectangular Rosette Strain Gauge
Documents
Technical documentation and resources
