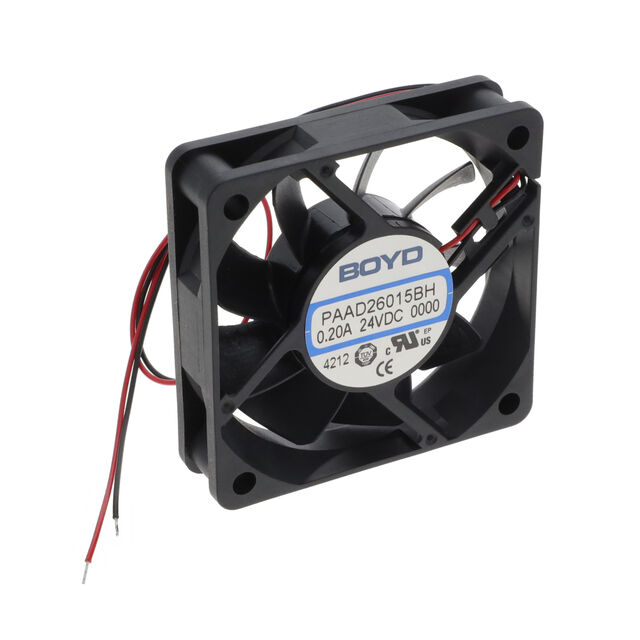

PAAD26015BH
ActiveBoyd Laconia, LLC
FAN 24VDC 60X15.4MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PAAD26015BH
ActiveBoyd Laconia, LLC
FAN 24VDC 60X15.4MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PAAD26015BH |
|---|---|
| Air Flow | 0.683 m³/min |
| Air Flow | 24.4 CFM |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.2 A |
| Fan Type | Tubeaxial |
| Features | Auto Restart |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 34.5 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 2.16 W |
| RPM | 4600 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 0.18 in H2O |
| Static Pressure | 45 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 12 VDC |
| Width [x] | 15.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.15 | |
| 10 | $ 4.98 | |||
| 25 | $ 4.84 | |||
| 50 | $ 4.55 | |||
| 100 | $ 4.09 | |||
| 250 | $ 4.03 | |||
| 500 | $ 3.77 | |||
Description
General part information
PAAD26015BH
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 24.4 CFM (0.683mł/min) 2 Wire Leads
