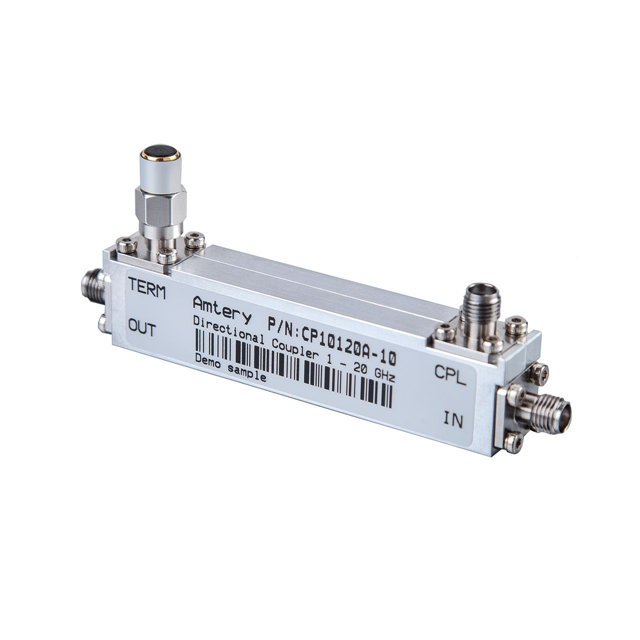

CP10120A-10
ActiveAmtery Corporation
1 GHZ - 20 GHZ, 10 DB COUPLING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP10120A-10
ActiveAmtery Corporation
1 GHZ - 20 GHZ, 10 DB COUPLING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP10120A-10 |
|---|---|
| Applications | General Purpose |
| Coupler Type | Standard |
| Frequency [Max] | 20 GHz |
| Frequency [Min] | 1 GHz |
| Insertion Loss | 1.6 dB |
| Isolation | 33 dB |
| Package / Case | Module, SMA Connectors |
| Power - Max [Max] | 20 W |
| Return Loss | 21 dB |
| Supplier Device Package | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 598.00 | |
| 4 | $ 583.00 | |||
| 10 | $ 573.00 | |||
Description
General part information
CP10120A-10
RF Directional Coupler General Purpose 1GHz ~ 20GHz 10dB 20W Module, SMA Connectors
