309-65311

Active

HELLERMANNTYTON

TFN21 25.4/12.7 RD 1" 200FT

Search across all available documentation for this part.

Active

HELLERMANNTYTON

TFN21 25.4/12.7 RD 1" 200FT

Technical Specifications

Parameters and characteristics for this part

Specification	309-65311

Color	Red
Features	Chemical Resistant, Abrasion Resistant, Oil Resistent, Solvent Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	0.5 in
Inner Diameter - Recovered [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	1 in
Inner Diameter - Supplied [diameter]	25.4 mm
Length [x]	61 m
Length [x]	200 ft
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.034 in
Recovered Wall Thickness	0.87 mm
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 159.12

General part information

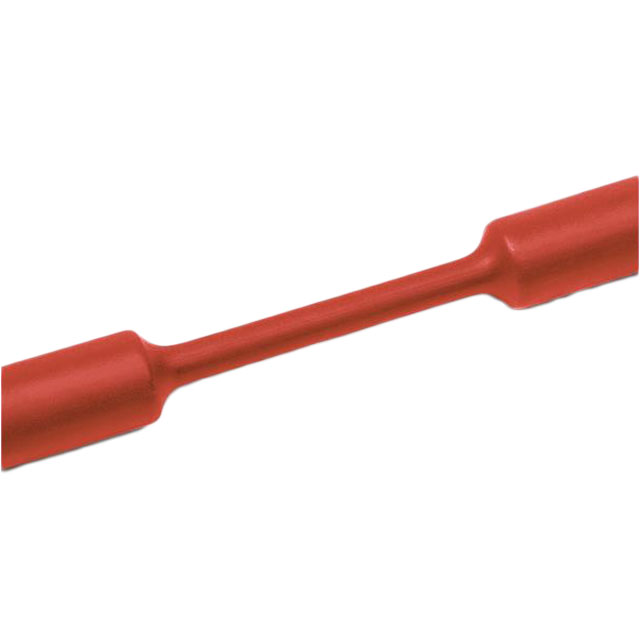

Heat Shrink Tubing, Flexible 1.000" (25.40mm) 2 to 1 Red 200.0' (61.0m)
