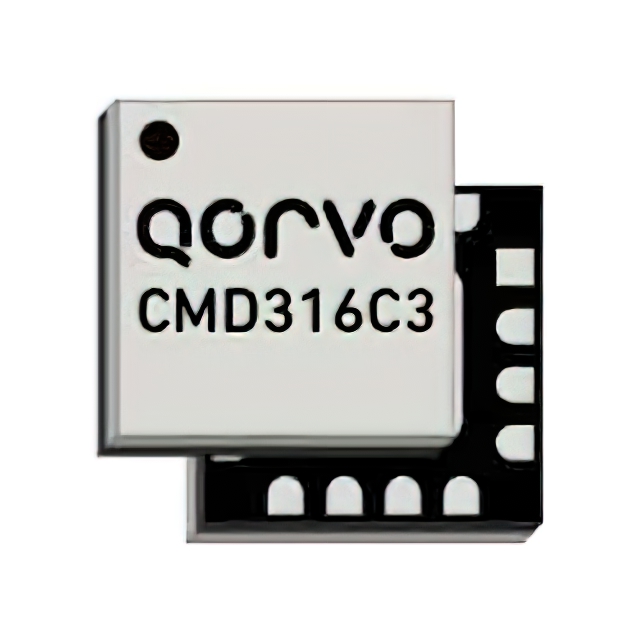

CMD316C3
ActiveQorvo
6 - 20 GHZ LOW NOISE AMPLIFIER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CMD316C3
ActiveQorvo
6 - 20 GHZ LOW NOISE AMPLIFIER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CMD316C3 |
|---|---|
| Current - Supply | 100 mA |
| Frequency [Max] | 20 GHz |
| Frequency [Min] | 6 GHz |
| Gain | 19 dB |
| Mounting Type | Surface Mount |
| Noise Figure | 2 dB |
| P1dB | 15.5 dBm |
| Package / Case | 16-WFQFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 16-QFN (3x3) |
| Test Frequency [Max] | 20 GHz |
| Test Frequency [Min] | 18 GHz |
| Voltage - Supply [Max] | 5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 63.99 | |
| 25 | $ 43.12 | |||
| 100 | $ 35.36 | |||
| Digi-Reel® | 1 | $ 63.99 | ||
| 25 | $ 43.12 | |||
| 100 | $ 35.36 | |||
| Tape & Reel (TR) | 500 | $ 35.36 | ||
Description
General part information
CMD316C3
RF Amplifier IC General Purpose 6GHz ~ 20GHz 16-QFN (3x3)
