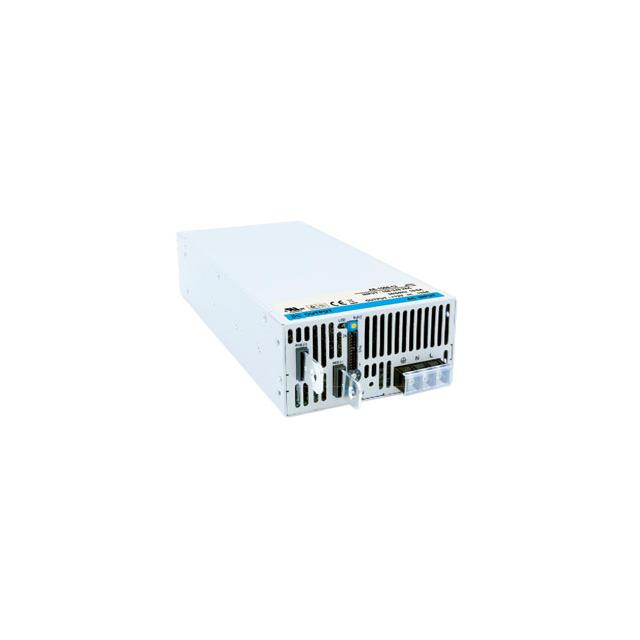

AE-1500-24
ActiveCotek
AC/DC CONVERTER 24V 1500W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AE-1500-24
ActiveCotek
AC/DC CONVERTER 24V 1500W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AE-1500-24 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 62.5 A |
| Efficiency | 92 % |
| Features | Remote On/Off, Universal Input, PFC, DC Input Capable, Adjustable Output, Standby Input, Load Sharing, Remote Sense |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 1500 W |
| Size / Dimension [x] | 280 mm |
| Size / Dimension [x] | 11.02 in |
| Size / Dimension [y] | 5 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [z] | 63.5 mm |
| Size / Dimension [z] | 2.5 in |
| Standard Number | 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 593.40 | |
Description
General part information
AE-1500-24
Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC, 127 ~ 370 VDC Input
