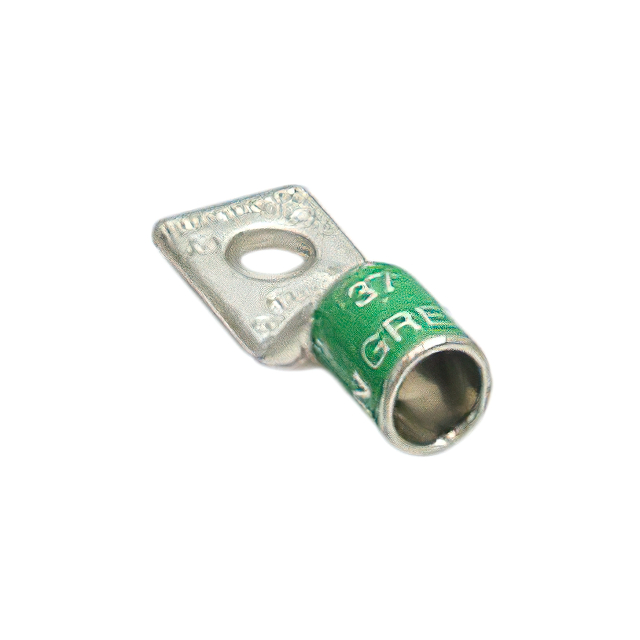

CTL1-516
ActiveBlackburn, a T & B Brand
RING TERMINAL, 5/16" STUD, 1AWG,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CTL1-516
ActiveBlackburn, a T & B Brand
RING TERMINAL, 5/16" STUD, 1AWG,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CTL1-516 |
|---|---|
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Insulated |
| Length - Overall [x] | 1.719 in |
| Length - Overall [x] | 43.66 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.3125 Stud |
| Tab Thickness | 2.38 mm |
| Tab Thickness | 0.094 in |
| Terminal Style | Single Stud Hole |
| Terminal Type | Standard |
| Termination | Crimp |
| Width - Outer Edges [y] | 16.67 mm |
| Width - Outer Edges [y] | 0.656 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.29 | |
Description
General part information
CTL1-516
Terminal Connector Rectangular Standard 5/16 Stud
