AK09940
ObsoleteAsahi Kasei Microdevices Corporation
IC 3AXIS ELECT MAGNETOMETER 11LG
Deep-Dive with AI
Search across all available documentation for this part.
AK09940
ObsoleteAsahi Kasei Microdevices Corporation
IC 3AXIS ELECT MAGNETOMETER 11LG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AK09940 |
|---|---|
| Axis [x] | X |
| Axis [y] | Y |
| Axis [z] | Z |
| Current - Supply (Max) [Max] | 2.5 mA |
| Features | Internal Magnet |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | I2C, SPI |
| Package / Case | 11-UFLGA |
| Resolution | 18 b |
| Sensing Range | 1.2 mT |
| Supplier Device Package | 11-LGA |
| Supplier Device Package [x] | 1.6 |
| Supplier Device Package [y] | 1.6 |
| Technology | Magnetoresistive |
| Voltage - Supply [Max] | 1.98 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AK09940

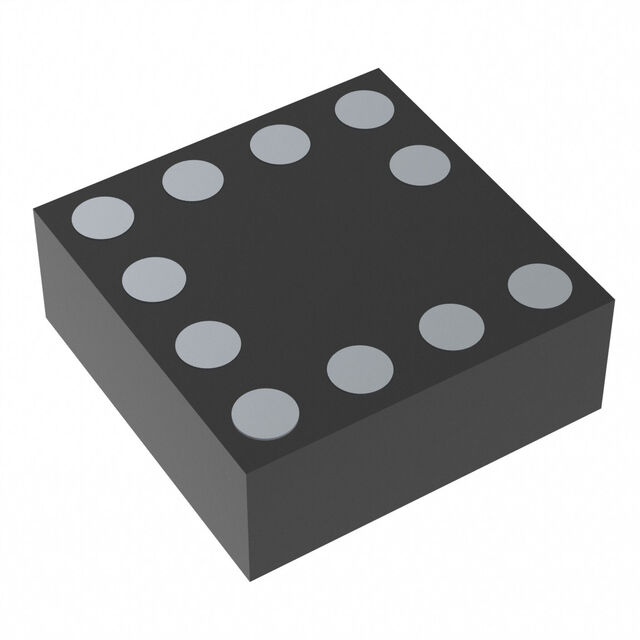

Magnetoresistive Sensor X, Y, Z Axis 11-LGA (1.6x1.6)
