P4020004NM67WER
ActiveStetron

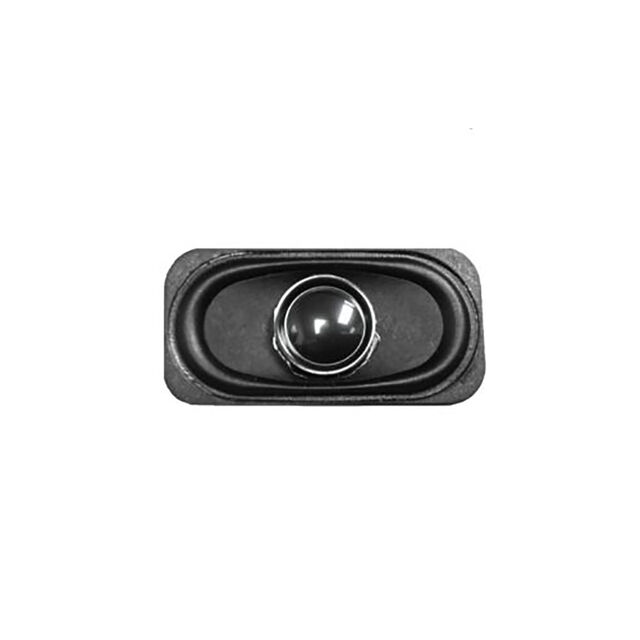

LOUDSPEAKER, 40 X 20 MM ; 4 OHMS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P4020004NM67WER
ActiveStetron
LOUDSPEAKER, 40 X 20 MM ; 4 OHMS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P4020004NM67WER |
|---|---|
| Distortion Rating [Max] | 5 % |
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing | 100mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 650 Hz |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 650 Hz |
| Height - Seated (Max) [Max] | 0.354 in |
| Height - Seated (Max) [Max] | 9 mm |
| Impedance | 4 Ohms |
| Ingress Protection | IPX4 |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] [custom] | 55 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Port Location | Top |
| Power - Max [Max] | 3 W |
| Power - Rated | 2.5 W |
| Shape | Round, Rectangular Frame |
| Size / Dimension [x] | 1.594 in |
| Size / Dimension [x] | 40.5 mm |
| Size / Dimension [y] | 0.807 in |
| Size / Dimension [y] | 20.5 mm |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 6.57 | |
| 10 | $ 5.48 | |||
| 50 | $ 5.15 | |||
Description
General part information
P4020004NM67WER
4 Ohms General Purpose Speaker 2.5 W 650 Hz ~ 10 kHz Top Round, Rectangular Frame
