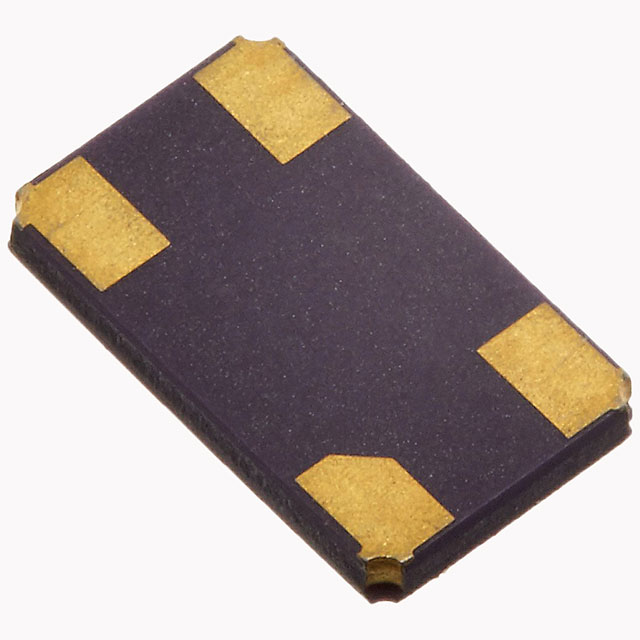

H10S-12.000-18-5050-EXT-TR
ObsoleteRaltron Electronics
CRYSTAL 12.0000MHZ 18PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H10S-12.000-18-5050-EXT-TR
ObsoleteRaltron Electronics
CRYSTAL 12.0000MHZ 18PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H10S-12.000-18-5050-EXT-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 130 Ohms |
| Frequency | 12 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 50 ppm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Load Capacitance | 18 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.236 in |
| Size / Dimension [x] | 6 mm |
| Size / Dimension [y] | 3.5 mm |
| Size / Dimension [y] | 0.138 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
H10S-12.000-18-5050-EXT-TR
12 MHz ±50ppm Crystal 18pF 130 Ohms 4-SMD, No Lead
