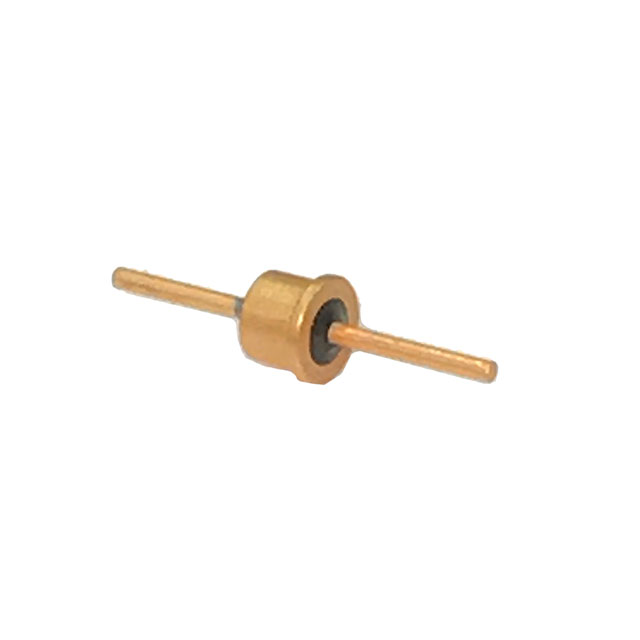

ZSC502D
ActiveEMI FILTER COMPANY
FILTER, SOLDER IN, BAR END GLS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZSC502D
ActiveEMI FILTER COMPANY
FILTER, SOLDER IN, BAR END GLS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZSC502D |
|---|---|
| Capacitance | 5000 pF |
| Current | 10 A |
| Height (Max) [Max] | 0.5 mm |
| Height (Max) [Max] | 0.02 in |
| Insertion Loss | 30 dB |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Bushing, Axial |
| Size / Dimension [diameter] | 0.156 in |
| Size / Dimension [diameter] | 3.96 mm |
| Size / Dimension [x] | 6.35 mm |
| Size / Dimension [x] | 0.25 " |
| Tolerance [Max] | 100 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.20 | |
| 25 | $ 11.01 | |||
| 50 | $ 8.80 | |||
| 100 | $ 6.61 | |||
| 250 | $ 5.50 | |||
| 500 | $ 4.85 | |||
| 1000 | $ 4.40 | |||
| 2500 | $ 4.18 | |||
| 5000 | $ 3.95 | |||
Description
General part information
ZSC502D
5000 pF Feed Through Capacitor 200V 10 A Axial, Bushing
