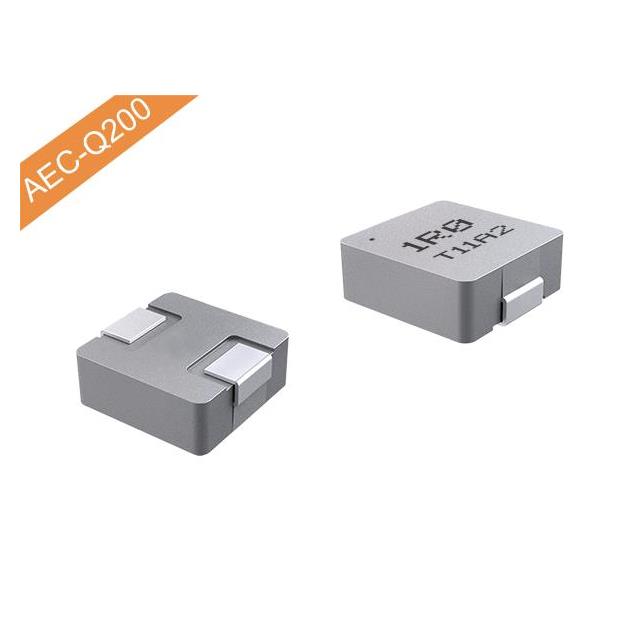

CSAB1045A-R82M
ActiveCODACA
FIX IND 0.82UH 22.5A 2.80MOHM SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSAB1045A-R82M |
|---|---|
| Current - Saturation (Isat) | 30 A |
| Current Rating (Amps) | 22.5 A |
| DC Resistance (DCR) [Max] | 2.8 mOhm |
| Height - Seated (Max) | 4.5 mm |
| Height - Seated (Max) [Max] | 0.177 " |
| Inductance | 820 nH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy Powder |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension [x] | 11.5 mm |
| Size / Dimension [x] | 0.453 " |
| Size / Dimension [y] | 0.394 in |
| Size / Dimension [y] | 10 mm |
| Tolerance | 20 % |
| Type | Molded |
