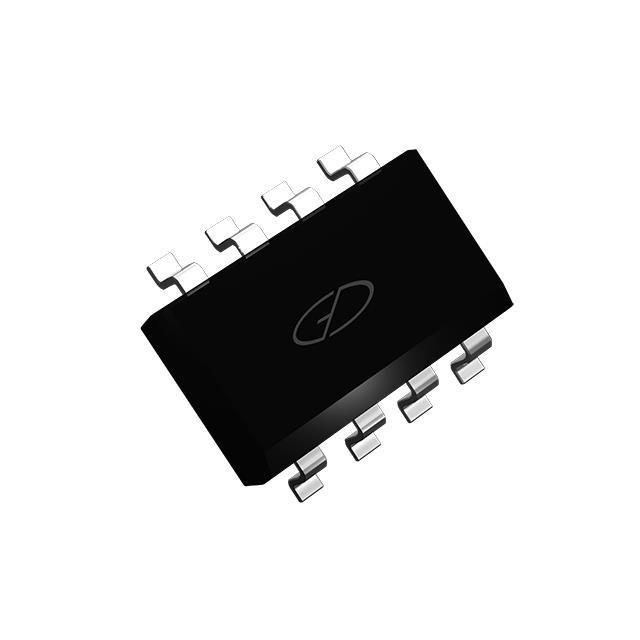

SSFQ3805
ActiveGood-Ark Semiconductor
MOSFET 2P-CH 30V 18.4A 8SOP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SSFQ3805
ActiveGood-Ark Semiconductor
MOSFET 2P-CH 30V 18.4A 8SOP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SSFQ3805 |
|---|---|
| Configuration | 2 P-Channel |
| Current - Continuous Drain (Id) @ 25°C | 18.4 A |
| Drain to Source Voltage (Vdss) | 30 V |
| Gate Charge (Qg) (Max) @ Vgs | 21 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 2510 pF |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Power - Max | 8.9 W |
| Rds On (Max) @ Id, Vgs | 16 mOhm |
| Supplier Device Package | 8-SOP |
| Technology | MOSFET (Metal Oxide) |
| Vgs(th) (Max) @ Id | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.17 | |
| 10 | $ 0.73 | |||
| 25 | $ 0.62 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.35 | |||
| Digi-Reel® | 1 | $ 1.17 | ||
| 10 | $ 0.73 | |||
| 25 | $ 0.62 | |||
| 100 | $ 0.48 | |||
| 250 | $ 0.42 | |||
| 500 | $ 0.38 | |||
| 1000 | $ 0.35 | |||
| Tape & Reel (TR) | 3000 | $ 0.30 | ||
| 6000 | $ 0.28 | |||
| 9000 | $ 0.27 | |||
| 15000 | $ 0.26 | |||
| 21000 | $ 0.26 | |||
| 30000 | $ 0.25 | |||
Description
General part information
SSFQ3805
Mosfet Array 30V 18.4A (Tc) 8.9W (Tc) Surface Mount 8-SOP
