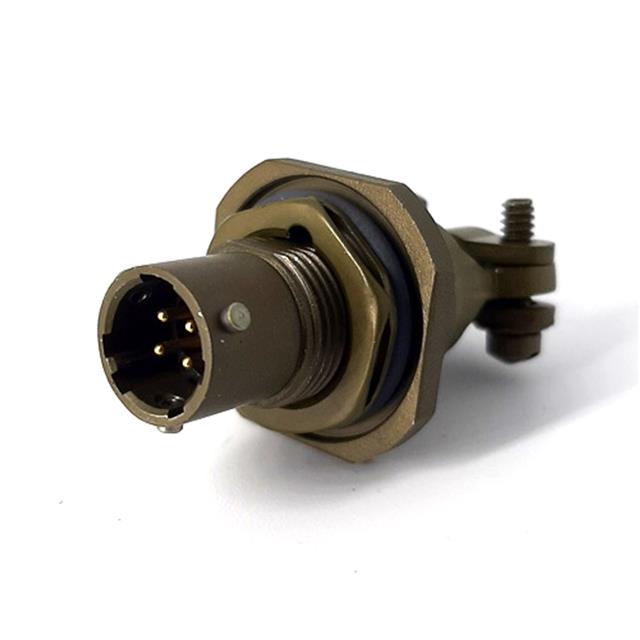

MSW07E8-4P-SR
ActiveMilspecwest, LLC
JAM NUT RECEPTACLE, WITH STRAIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MSW07E8-4P-SR
ActiveMilspecwest, LLC
JAM NUT RECEPTACLE, WITH STRAIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MSW07E8-4P-SR |
|---|---|
| Applications | Military |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Cadmium |
| Current Rating (Amps) | 7.5 A |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Finish | Cadmium |
| Shell Material | Aluminum |
| Shell Size - Insert | 8-4 |
| Termination | Solder |
| Voltage Rating | 800 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.64 | |
| 10 | $ 13.77 | |||
| 25 | $ 12.89 | |||
| 100 | $ 12.01 | |||
Description
General part information
MSW07E8-4P-SR
4 Position Circular Connector Plug, Male Pins Solder
