2408NL-05W-B30-L00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 60X20MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
2408NL-05W-B30-L00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 60X20MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2408NL-05W-B30-L00 |
|---|---|
| Air Flow | 0.414 mł/min |
| Air Flow | 14.8 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Current Rating (Amps) | 45 mA |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 27 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 1.08 W |
| RPM | 3600 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Static Pressure | 28.7 Pa |
| Static Pressure | 0.115 in H2O |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Weight | 0.187 lb |
| Weight | 84.82 g |
| Width [y] | 20 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
2408NL-05W-B30-L00

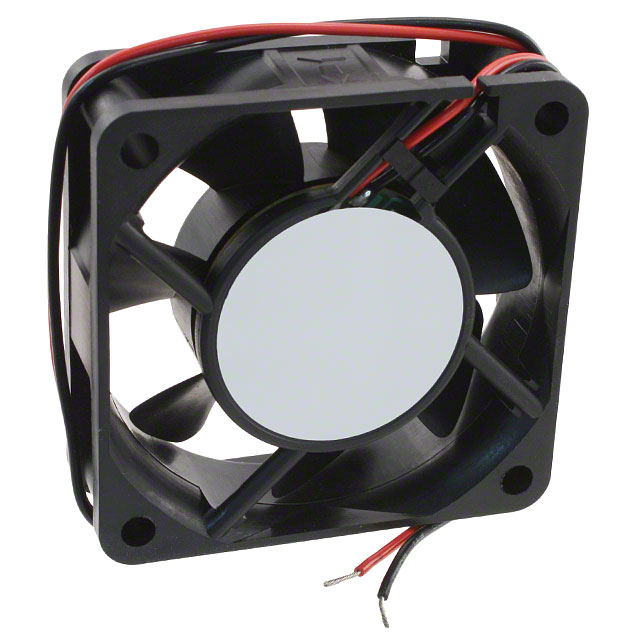

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 14.8 CFM (0.414mł/min) 2 Wire Leads
