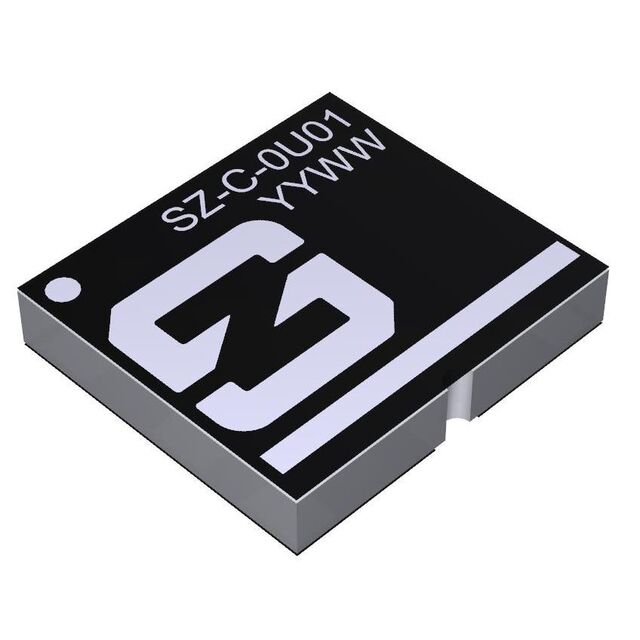

SZP-C-0U01
ActiveSynzen
UWB ANT 3-7GHZ SMD CHIP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SZP-C-0U01
ActiveSynzen
UWB ANT 3-7GHZ SMD CHIP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SZP-C-0U01 |
|---|---|
| Antenna Type | Chip |
| Applications | UWB |
| Frequency (Center/Band) | 3.99 GHz, 4.49 GHz, 3.49 GHz, 3.985 GHz |
| Frequency Group | Wide Band |
| Frequency Range [Max] | 7 GHz |
| Frequency Range [Min] | 3 GHz |
| Gain | 3.6 dBi |
| Height (Max) [Max] | 0.063 in |
| Height (Max) [Max] | 1.6 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Return Loss | -10 dB |
| RF Family/Standard | Ultra Wide Band |
| Termination | Solder |
| VSWR | 2.3 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5 | $ 3.70 | |
| 20 | $ 3.45 | |||
| 100 | $ 3.17 | |||
| 250 | $ 2.90 | |||
| 500 | $ 2.60 | |||
| 1000 | $ 2.20 | |||
| 2000 | $ 1.95 | |||
| 5000 | $ 1.78 | |||
| 10000 | $ 1.65 | |||
Description
General part information
SZP-C-0U01
RF ANTENNA UWB Chip Solder Surface Mount
