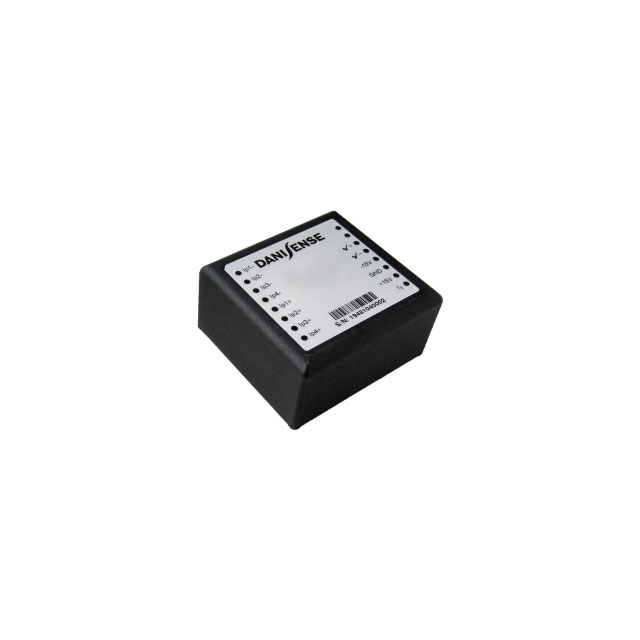

DP50IP
ActiveDanisense A/S
50A PROGRAMMABLE CURRENT TRANSDU
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DP50IP
ActiveDanisense A/S
50A PROGRAMMABLE CURRENT TRANSDU
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DP50IP |
|---|---|
| Accuracy | 0.011 % |
| Current - Sensing | 12.5 A, 25 A, 50 A |
| Current - Supply (Max) [Max] | 42 mA |
| For Measuring | AC/DC |
| Frequency | DC ~ 1MHz |
| Linearity | 0.001 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Output | Current, Ratiometric |
| Package / Case | Module |
| Polarization | Bidirectional |
| Response Time | 1 µs |
| Sensor Type | Flux Gate, Closed Loop |
| Voltage - Supply [Max] | 15.75 V |
| Voltage - Supply [Min] | 14.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 313.89 | |
Description
General part information
DP50IP
Current Sensor 12.5A, 25A, 50A (Selectable) 1 Channel Flux Gate, Closed Loop Bidirectional Module
