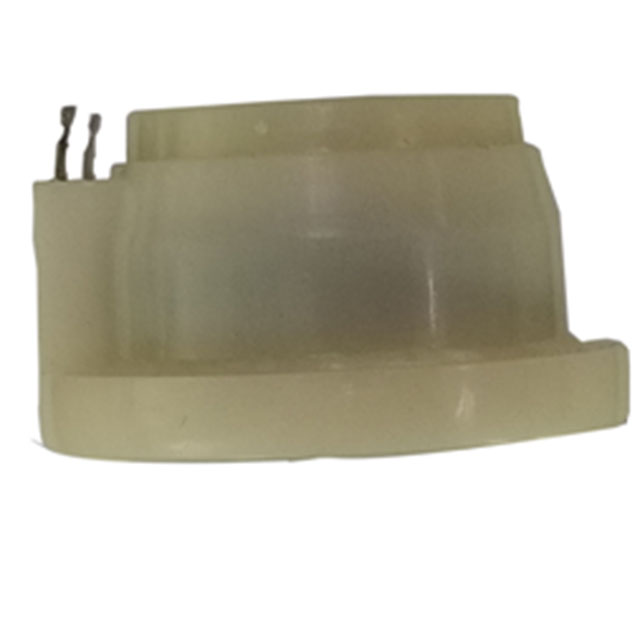

NR38150-01W-03
ActiveHuizhou N Acoustics Co., Ltd
SPEAKER 150OHM 10MW 97DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NR38150-01W-03
ActiveHuizhou N Acoustics Co., Ltd
SPEAKER 150OHM 10MW 97DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NR38150-01W-03 |
|---|---|
| Efficiency - dBA | 97 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 5 kHz |
| Frequency Range [Min] | 200 Hz |
| Height - Seated (Max) [Max] | 21.2 mm |
| Height - Seated (Max) [Max] | 0.835 " |
| Impedance | 150 Ohms |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Power - Max [Max] | 20 mW |
| Power - Rated | 10 mW |
| Shape | Round |
| Size / Dimension | 38 mm |
| Size / Dimension [diameter] | 1.496 " |
| Technology | Magnetic |
| Termination | PC Pins |
| Type | Receiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.20 | |
| 10 | $ 1.16 | |||
| 25 | $ 1.12 | |||
| 50 | $ 1.00 | |||
| 100 | $ 0.80 | |||
Description
General part information
NR38150-01W-03
150 Ohms Receiver Speaker 10 mW 200 Hz ~ 5 kHz Round
