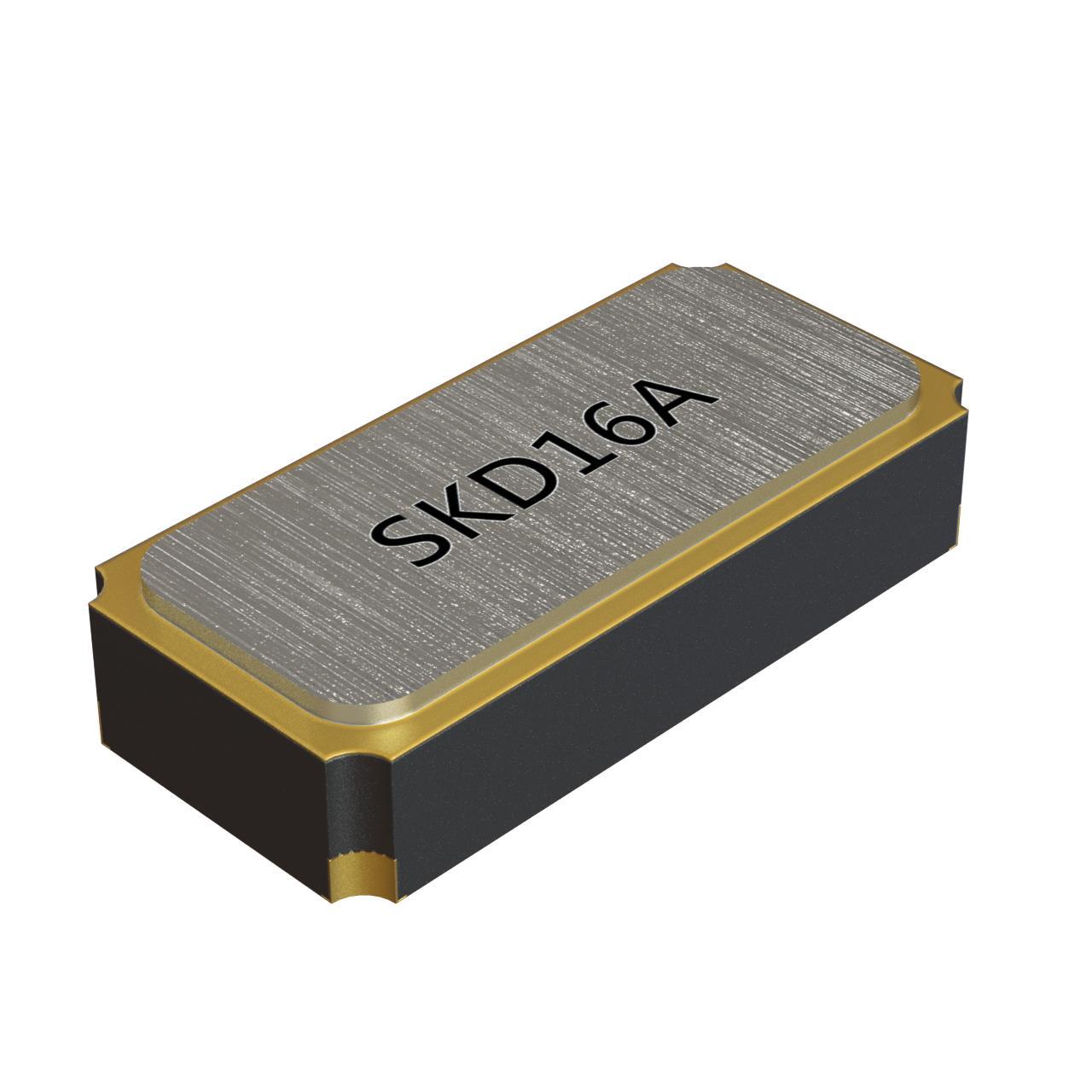

XTL721-S999-437
ActiveSiward
CRYSTAL 32.768 KHZ 7PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XTL721-S999-437
ActiveSiward
CRYSTAL 32.768 KHZ 7PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XTL721-S999-437 |
|---|---|
| ESR (Equivalent Series Resistance) | 70 kOhms |
| Frequency | 32.768 kHz |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Load Capacitance | 7 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Type | kHz Crystal (Tuning Fork) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.60 | |
| 10 | $ 0.52 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.45 | |||
| 500 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 0.60 | ||
| 10 | $ 0.52 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.45 | |||
| 500 | $ 0.41 | |||
| Tape & Reel (TR) | 1000 | $ 0.39 | ||
| 2000 | $ 0.37 | |||
| 3000 | $ 0.37 | |||
| 5000 | $ 0.35 | |||
| 7000 | $ 0.35 | |||
| 10000 | $ 0.34 | |||
| 25000 | $ 0.32 | |||
Description
General part information
XTL721-S999-437
32.768 kHz ±20ppm Crystal 7pF 70 kOhms 2-SMD, No Lead
Documents
Technical documentation and resources
