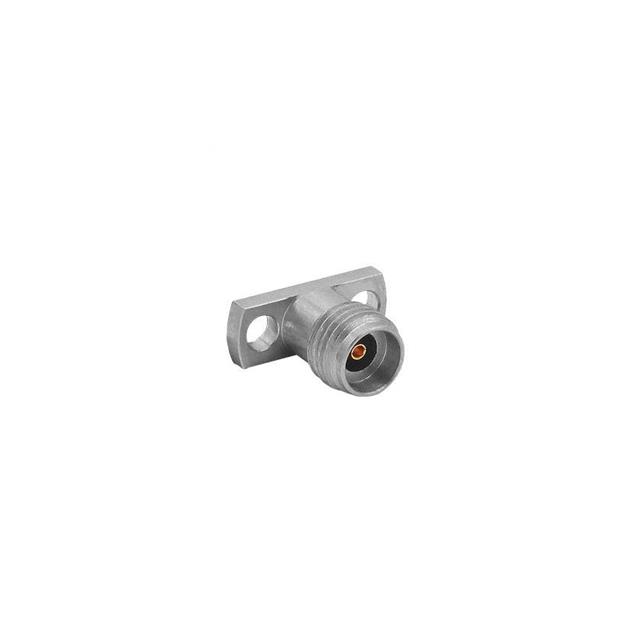

RF292A2JCCB
ActiveBULGIN LIMITED
RF / COAXIAL CONNECTOR, 2.92MM COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER
Deep-Dive with AI
Search across all available documentation for this part.
RF292A2JCCB
ActiveBULGIN LIMITED
RF / COAXIAL CONNECTOR, 2.92MM COAXIAL, STRAIGHT FLANGED JACK, SOLDER, 50 OHM, BERYLLIUM COPPER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF292A2JCCB |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Connector Style | 2.92 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Compression |
| Dielectric Material | Polyetherimide (PEI) |
| Frequency - Max [Max] | 40 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Screw |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RF292A2JCCB
2.92mm Connector Jack, Female Socket 50 Ohms Panel Mount Compression
