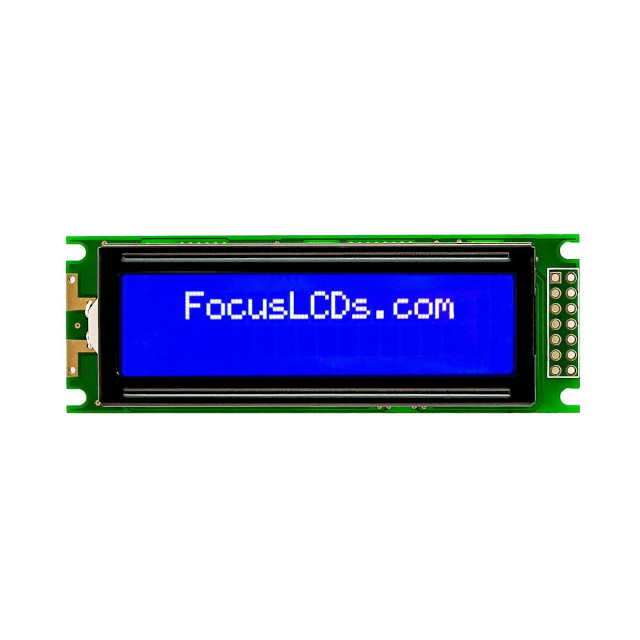

C162C-BW-LW65
ActiveFocus LCDs
16X2 STN BLUE CHARACTER LCD
Deep-Dive with AI
Search across all available documentation for this part.
C162C-BW-LW65
ActiveFocus LCDs
16X2 STN BLUE CHARACTER LCD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C162C-BW-LW65 |
|---|---|
| Background Color | Blue |
| Backlight | LED - White |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [x] | 3 mm |
| Character Size [y] | 5.23 mm |
| Controller Type | ST7066U |
| Display Format [x] | 16 |
| Display Format [y] | 2 |
| Display Mode | Transmissive |
| Display Type | STN - Super-Twisted Nematic |
| Dot Size [x] | 0.56 mm |
| Dot Size [y] | 0.61 mm |
| Interface | Parallel |
| Number of Characters | 32 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Outline L x W x H [x] | 85 mm |
| Outline L x W x H [y] | 29.5 mm |
| Outline L x W x H [z] | 13.5 mm |
| Text Color | White |
| Viewing Area [x] | 64.5 mm |
| Viewing Area [y] | 16.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 6.27 | |
| 10 | $ 6.08 | |||
| 25 | $ 5.89 | |||
| 50 | $ 5.70 | |||
| 100 | $ 5.51 | |||
| 250 | $ 5.28 | |||
| 500 | $ 5.05 | |||
| 1000 | $ 4.85 | |||
Description
General part information
C162C-BW-LW65
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 85.00mm x 29.50mm x 13.50mm
Documents
Technical documentation and resources
No documents available
