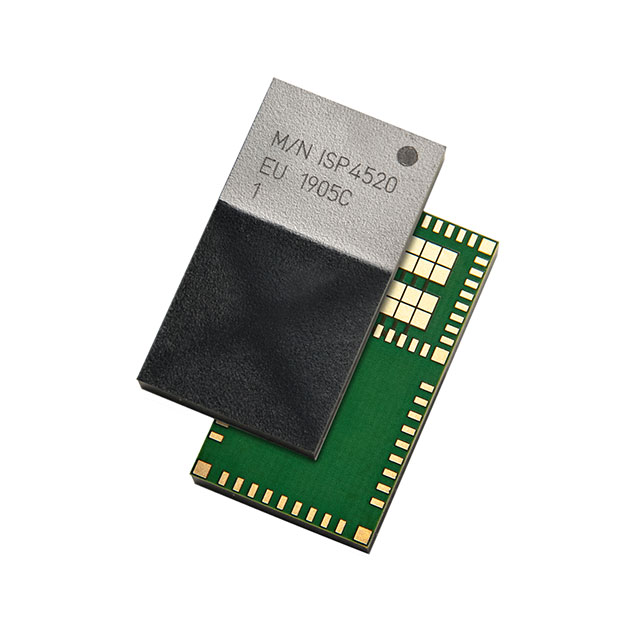

ISP4520-AS-ST
ActiveInsight SIP
RF TXRX MOD BT TH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISP4520-AS-ST
ActiveInsight SIP
RF TXRX MOD BT TH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISP4520-AS-ST |
|---|---|
| Antenna Type | Integrated, Trace |
| Current - Receiving [Max] | 6.1 mA |
| Current - Receiving [Min] | 4.6 mA |
| Current - Transmitting [Max] | 118 mA |
| Current - Transmitting [Min] | 5.4 mA |
| Data Rate | 2 Mbps |
| Frequency | 920 MHz, 2.48 GHz |
| Frequency [Max] | 923 MHz |
| Frequency [Min] | 2.402 GHz |
| Memory Size [custom] | 64 kB |
| Memory Size [custom] | 512 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 74-SMD Module |
| Power - Output | 14 dBm |
| Protocol | Bluetooth v5.0, LoRaWAN |
| RF Family/Standard | Bluetooth |
| Sensitivity | -137 dBm |
| Serial Interfaces | SPI, JTAG, I2C |
| Utilized IC / Part | nRF52832 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 50 | $ 17.18 | |
Description
General part information
ISP4520-AS-ST
Bluetooth Bluetooth v5.0, LoRaWAN Transceiver Module 920MHz, 2.402GHz ~ 923MHz, 2.48GHz Integrated, Trace Surface Mount
