Technical Specifications
Parameters and characteristics for this part
| Specification | MDBT50Q-P1MV2 |
|---|---|
| Antenna Type | PCB Trace |
| Current - Receiving [Max] | 11.1 mA |
| Current - Receiving [Min] | 3.7 mA |
| Current - Transmitting [Max] | 32.7 mA |
| Current - Transmitting [Min] | 2.7 mA |
| Data Rate | 2 Mbps |
| Frequency [Max] | 2.5 GHz |
| Frequency [Min] | 2.36 GHz |
| Memory Size | 1 MB, 256 kB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 61-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Zigbee®, Bluetooth v5.4 |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Sensitivity | -103 dBm |
| Serial Interfaces | I2C, ADC, PWM, UART, PDM, SPI, I2S, GPIO, USB |
| Utilized IC / Part | nRF52840 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 8.50 | |
| 20 | $ 8.30 | |||
| 50 | $ 8.00 | |||
Description
General part information

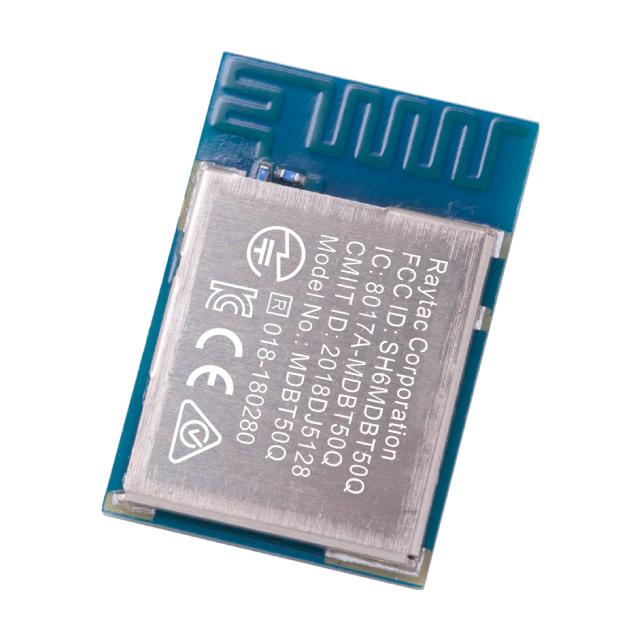

MDBT50Q-P1MV2
802.15.4, Bluetooth Bluetooth v5.4, Zigbee® Transceiver Module 2.36GHz ~ 2.5GHz PCB Trace Surface Mount
