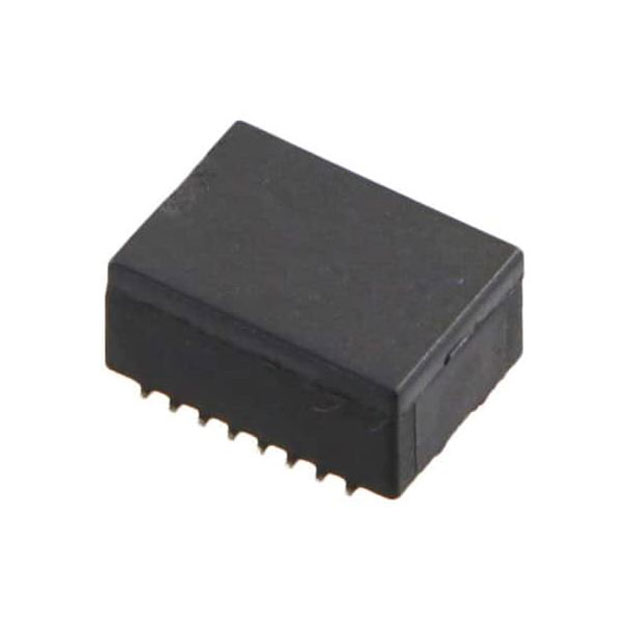

XFATM9B-LMCO-A
ActiveXFMRS
TRANSFORMER, 10/100, LEADED
Deep-Dive with AI
Search across all available documentation for this part.
XFATM9B-LMCO-A
ActiveXFMRS
TRANSFORMER, 10/100, LEADED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XFATM9B-LMCO-A |
|---|---|
| Height - Seated (Max) [Max] [z] | 6.23 mm |
| Height - Seated (Max) [Max] [z] | 0.245 in |
| Inductance | 350 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 12.95 mm |
| Size / Dimension [x] | 0.51 " |
| Size / Dimension [y] | 9.4 mm |
| Size / Dimension [y] | 0.37 " |
| Transformer Type | 10/100 Base-T |
| Turns Ratio - Primary:Secondary | 1CT:1CT Transmitter, 1CT:1CT Receiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 40.00 | |
| 25 | $ 32.00 | |||
| 100 | $ 24.00 | |||
| 500 | $ 16.00 | |||
Description
General part information
XFATM9B-LMCO-A
350µH 10/100 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Documents
Technical documentation and resources
No documents available
