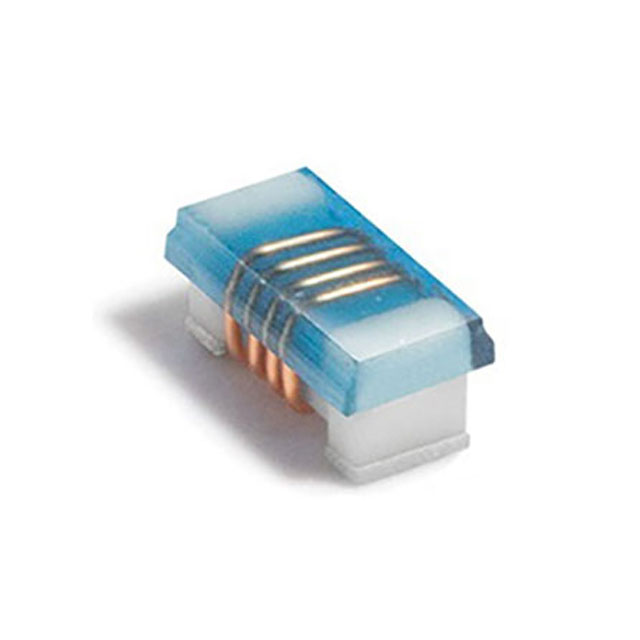

0603DC-6N8XGRW
ActiveCoilcraft
FIXED IND 6.8NH 2.58A 48MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0603DC-6N8XGRW
ActiveCoilcraft
FIXED IND 6.8NH 2.58A 48MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0603DC-6N8XGRW |
|---|---|
| Current Rating (Amps) | 2.58 A |
| Frequency - Self Resonant | 5.1 GHz |
| Height - Seated (Max) | 0.89 mm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Inductance | 6.8 nH |
| Inductance Frequency - Test | 250 MHz |
| Material - Core | Ceramic |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Ratings | AEC-Q200 |
| Shielding | Unshielded |
| Size / Dimension [x] | 1.7 mm |
| Size / Dimension [x] | 0.067 in |
| Size / Dimension [y] | 0.99 mm |
| Size / Dimension [y] | 0.039 " |
| Tolerance | 2 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 1.13 | |
| 200 | $ 0.91 | |||
| 500 | $ 0.68 | |||
Description
General part information
0603DC-6N8XGRW
6.8 nH Unshielded Drum Core, Wirewound Inductor 2.58 A 48mOhm Max 0603 (1608 Metric)
