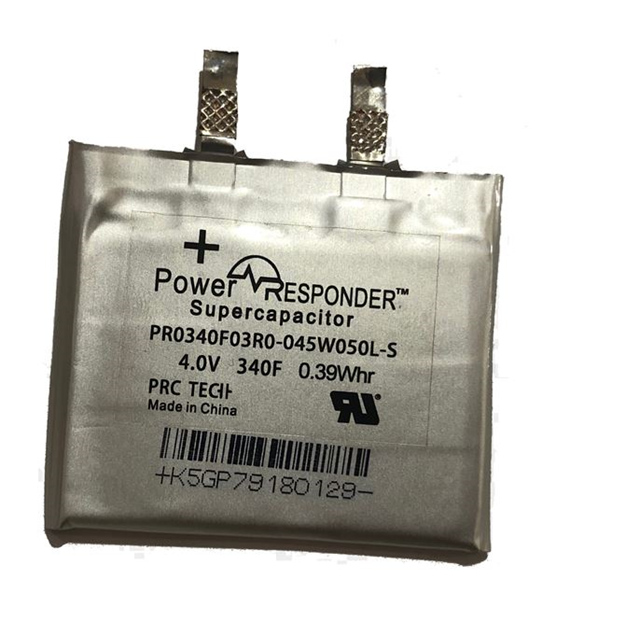

PR0340F03R0-045W050L-S
ActivePRC Tech LLC
POWERRESPONDER(R) - 340 FARAD H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PR0340F03R0-045W050L-S
ActivePRC Tech LLC
POWERRESPONDER(R) - 340 FARAD H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PR0340F03R0-045W050L-S |
|---|---|
| Capacitance | 340 F |
| ESR (Equivalent Series Resistance) | 40 mOhm |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | Nonstandard SMD |
| Size / Dimension [x] | 50 mm |
| Size / Dimension [x] | 1.969 in |
| Size / Dimension [y] | 1.772 " |
| Size / Dimension [y] | 45 mm |
| Termination | SMD (SMT) Tabs |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 4 | $ 37.50 | |
| 1000 | $ 31.88 | |||
Description
General part information
PR0340F03R0-045W050L-S
340 F (EDLC) Supercapacitor 4 V Nonstandard SMD 40mOhm @ 1kHz 1000 Hrs @ 65°C
