MLX90372GDC-ACC-100-SP
ActiveMelexis Technologies NV
SENSOR ROTRY/LNR ANLG/PWM 8SOIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MLX90372GDC-ACC-100-SP
ActiveMelexis Technologies NV
SENSOR ROTRY/LNR ANLG/PWM 8SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MLX90372GDC-ACC-100-SP |
|---|---|
| Actuator Type | External Magnet, Not Included |
| For Measuring | Rotary Position |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 160 °C |
| Operating Temperature [Min] | -40 °C |
| Output Signal | Programmable |

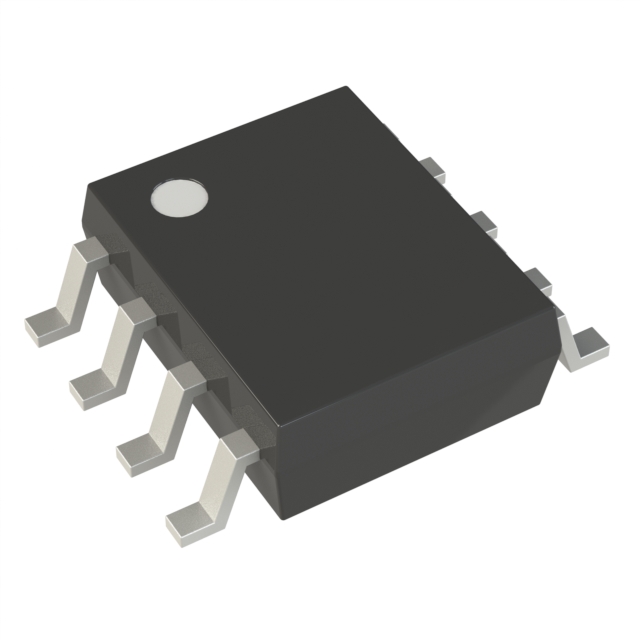

| Package / Case | 8-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Rotation Angle - Electrical, Mechanical [Max] | 360 ° |
| Rotation Angle - Electrical, Mechanical [Min] | 0 ° |
| Supplier Device Package | 8-SOIC |
| Technology | Hall Effect |
| Termination Style | Gull Wing |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 80 | $ 4.87 | |
Description
General part information
MLX90372GDC-ACC-100-SP
Hall Effect Sensor Rotary Position External Magnet, Not Included Gull Wing
