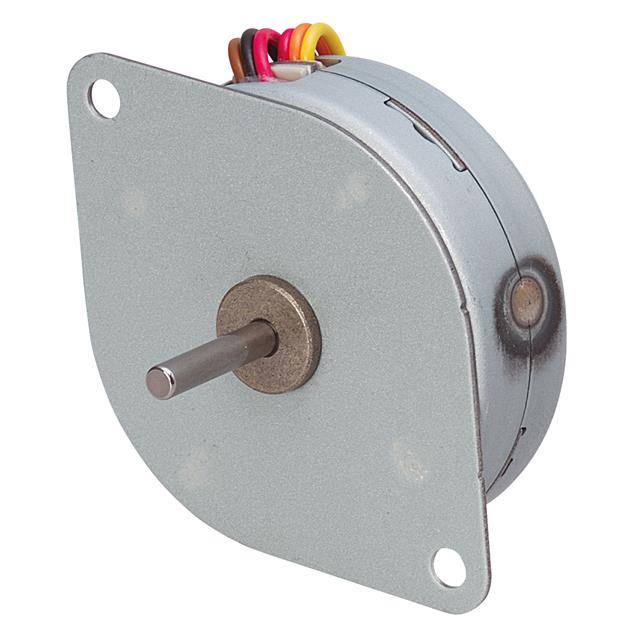

PF42T-96R4
ActiveNippon Pulse America, Inc.
TIN-CAN STEP MOTOR 96 STEPS 3.5V
Deep-Dive with AI
Search across all available documentation for this part.
PF42T-96R4
ActiveNippon Pulse America, Inc.
TIN-CAN STEP MOTOR 96 STEPS 3.5V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PF42T-96R4 |
|---|---|
| Diameter - Shaft [diameter] | 3 mm |
| Diameter - Shaft [diameter] | 0.118 in |
| Features | Round Shaft |
| Length - Shaft and Bearing [x] | 0.626 in |
| Length - Shaft and Bearing [x] | 15.9 mm |
| Mounting Hole Spacing | 49.5 mm |
| Mounting Hole Spacing | 1.949 in |
| Operating Temperature [Max] [custom] | 50 °C |
| Operating Temperature [Min] [custom] | -10 °C |
| Size / Dimension [diameter] | 1.654 " |
| Size / Dimension [diameter] | 42 mm |
| Step Angle | 3.75 ° |
| Steps per Revolution | 96 |
| Termination Style | Wire Leads |
| Type | Permanent Magnet |
| Voltage - Rated | 3.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 30.00 | |
Description
General part information
PF42T-96R4
Stepper Motor Permanent Magnet Frame Size 96.0 Step 3.5VDC
Documents
Technical documentation and resources
No documents available
