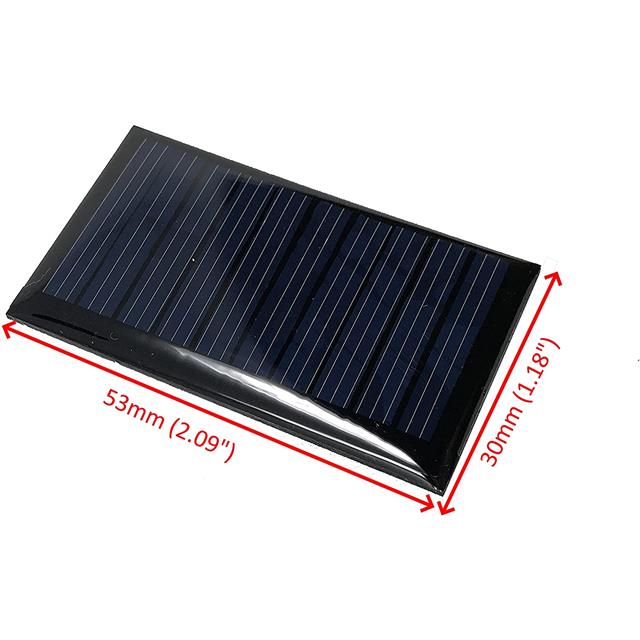

SP-53X30-1-DK
ActiveAMX Solar
POLYCRYS SOLAR CELL 5.0V 210MW -
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SP-53X30-1-DK
ActiveAMX Solar
POLYCRYS SOLAR CELL 5.0V 210MW -
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP-53X30-1-DK |
|---|---|
| Current @ Pmpp | 40.7 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) - Max [Max] | 210 mW |
| Size / Dimension [x] | 53 mm |
| Size / Dimension [x] | 2.086 in |
| Size / Dimension [y] | 30 mm |
| Size / Dimension [y] | 1.181 in |
| Size / Dimension [z] | 0.079 " |
| Size / Dimension [z] | 2 mm |
| Type | Polycrystalline |
| Voltage - Open Circuit | 6.27 V |
| Voltage @ Pmpp | 5.28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 8.25 | |
| 10 | $ 7.00 | |||
| 50 | $ 6.24 | |||
| 100 | $ 5.94 | |||
| 250 | $ 5.57 | |||
| 500 | $ 5.30 | |||
| 1000 | $ 5.04 | |||
Description
General part information
SP-53X30-1-DK
Polycrystalline Solar Cell 210 mW 6.27 V
Documents
Technical documentation and resources
