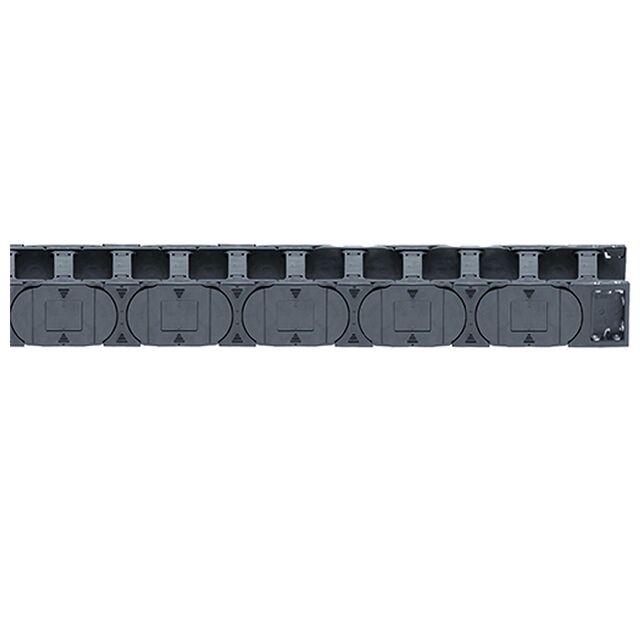

E4-32-29-150-0
ActiveIgus
CBLE CARRIER 2.13H 12.24W;1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E4-32-29-150-0
ActiveIgus
CBLE CARRIER 2.13H 12.24W;1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E4-32-29-150-0 |
|---|---|
| Cavity Height [z] | 32 mm |
| Cavity Height [z] | 1.26 in |
| Cavity Width [x] | 287 mm |
| Cavity Width [x] | 11.299 in |
| Frame Type | Open |
| Link Pitch | 2.2 in |
| Link Pitch | 55.88 mm |
| Loading Side | Inside and Outside Bend |
| Material | Igumid G |
| Minimum Bend Radius [radius] | 5.906 in |
| Minimum Bend Radius [radius] | 150 mm |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Outer Height [z] | 2.126 in |
| Outer Height [z] | 54 mm |
| Outer Width | 311 mm |
| Outer Width | 12.244 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.53 | |
| 25 | $ 40.97 | |||
| 50 | $ 39.45 | |||
| 100 | $ 37.96 | |||
Description
General part information
E4-32-29-150-0
CBLE CARRIER 2.13H 12.24W;1=1FT
Documents
Technical documentation and resources
