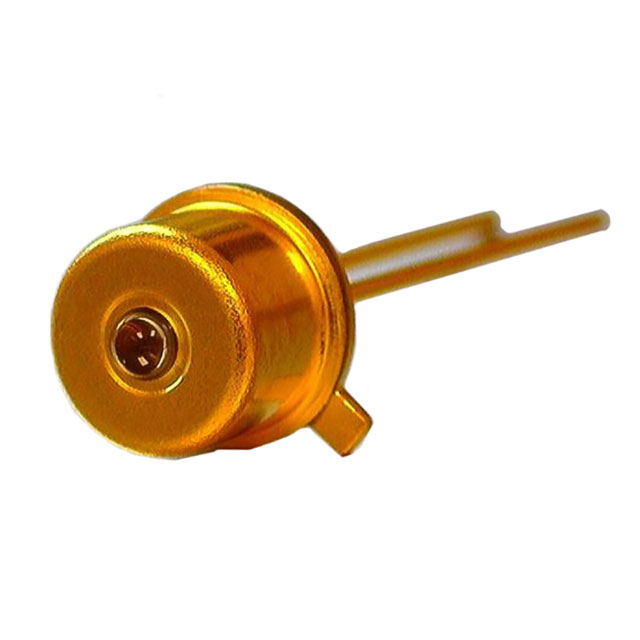

MTPD2601SL-030
ActiveMarktech Optoelectronics
SENSOR PHOTODIOD 800-2600NM TO46
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MTPD2601SL-030 |
|---|---|
| Active Area | 0.31 mm² |
| Current - Dark (Typ) | 45 µA |
| Diode Type | PIN |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Responsivity @ nm | 1.24 A/W |
| Spectral Range [Max] | 2600 nm |
| Spectral Range [Min] | 600 nm |
| Voltage - DC Reverse (Vr) (Max) [Max] | 1 V |
| Wavelength [Max] | 2600 nm |
| Wavelength [Min] | 800 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.53 | |
| 10 | $ 10.96 | |||
| 100 | $ 9.21 | |||
| 500 | $ 8.45 | |||
| 1000 | $ 7.98 | |||
Description
General part information
MTPD2601SL-030
Photodiode 800nm ~ 2600nm TO-46-2 Lens Top Metal Can
