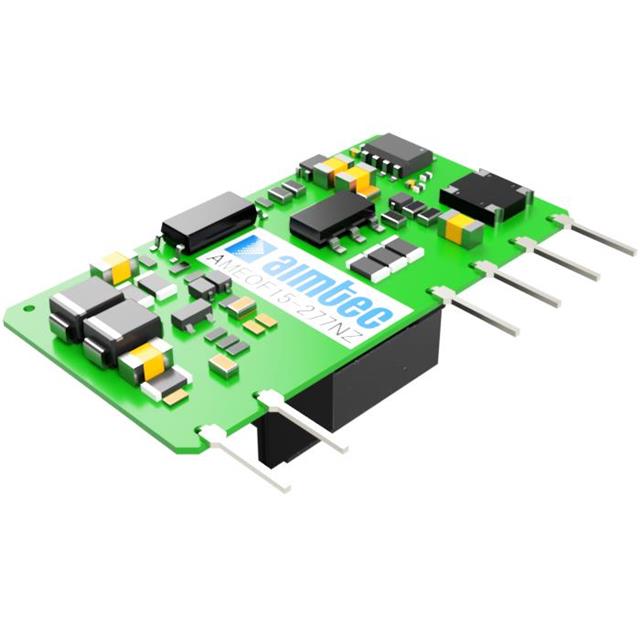

AMEOF15-15SL277NZ
Obsoleteaimtec
3W DC/DC CONVERTER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMEOF15-15SL277NZ
Obsoleteaimtec
3W DC/DC CONVERTER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEOF15-15SL277NZ |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | 84 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole, Right Angle |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SIP Module, 6 Leads |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 44.5 mm |
| Size / Dimension [x] | 1.75 " |
| Size / Dimension [y] | 0.94 in |
| Size / Dimension [y] | 24 mm |
| Size / Dimension [z] | 15 mm |
| Size / Dimension [z] | 0.59 in |
| Standard Number | 60335-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 305 VAC, 430 VDC |
| Voltage - Input [Min] | 100 V, 85 VAC |
| Voltage - Output 1 | 15 V |
| Weight | 0.024 lb |
| Weight | 11 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 8.36 | |
Description
General part information
AMEOF15-15SL277NZ
Open Frame AC DC Converters 1 Output 15V 1A 85 ~ 305 VAC, 100 ~ 430 VDC Input
