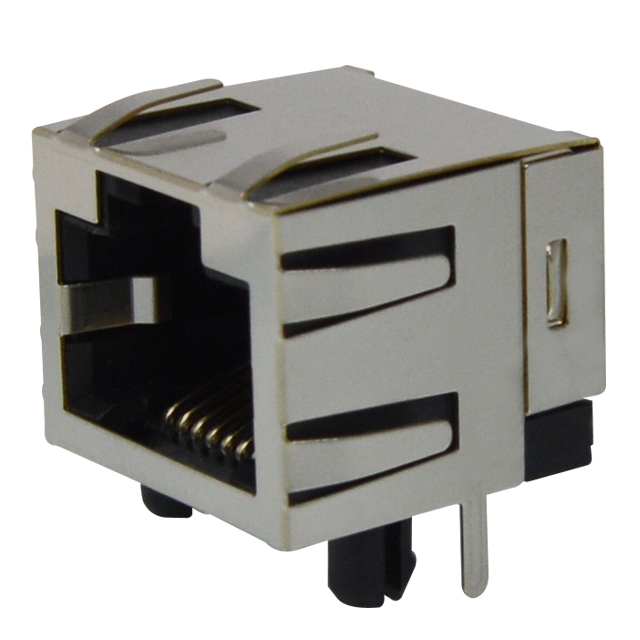

GWX-S9-88
ActiveKycon, Inc.
8P8C SHIELD MOD JACK WITH TOP/SI
Deep-Dive with AI
Search across all available documentation for this part.
GWX-S9-88
ActiveKycon, Inc.
8P8C SHIELD MOD JACK WITH TOP/SI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | GWX-S9-88 |
|---|---|
| Connector Type | Jack |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Material | Phosphor Bronze |
| Housing Material | Thermoplastic |
| LED Color | Does Not Contain LED |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Rows | 1 |
| Orientation | 90 ° |
| Shielding | Shielded, EMI Finger |
| Tab Direction | Up |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.08 | |
| 10 | $ 1.77 | |||
| 25 | $ 1.66 | |||
| 90 | $ 1.52 | |||
| 180 | $ 1.44 | |||
| 270 | $ 1.40 | |||
| 540 | $ 1.34 | |||
| 1080 | $ 1.27 | |||
| 2520 | $ 1.20 | |||
Description
General part information
GWX-S9-88
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger
