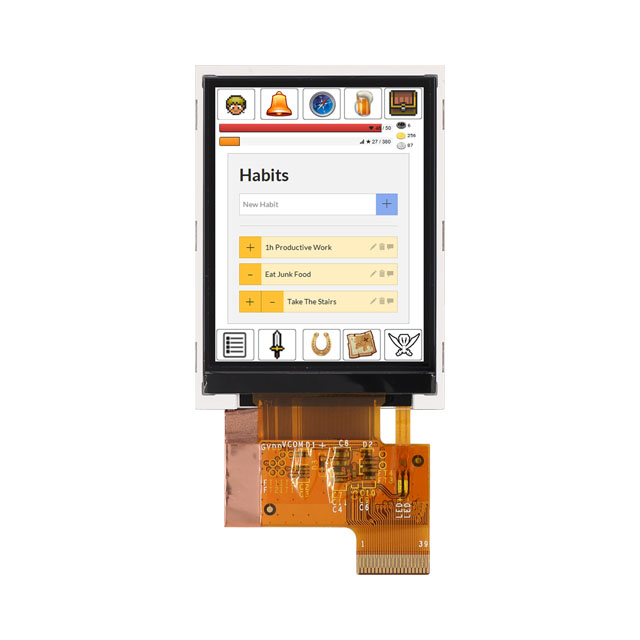

DLC0220BMG
ActiveDLC Display Co.,Ltd
2.2" TRANSFLECTIVE TFT 240X320
Deep-Dive with AI
Search across all available documentation for this part.
DLC0220BMG
ActiveDLC Display Co.,Ltd
2.2" TRANSFLECTIVE TFT 240X320
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLC0220BMG |
|---|---|
| Backlight | LED |
| Controller Type | ILI9341 |
| Diagonal Screen Size | 55.88 mm |
| Diagonal Screen Size [custom] | 2.2 in |
| Display Mode | Transflective |
| Display Type | TFT - Color |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 320 |
| Graphics Color | Green, Red, Blue |
| Interface | Parallel, SPI |
| Interface | 18 Bit |
| Viewing Area [y] | 34.84 mm |
| Viewing Area [z] | 46.12 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 41.97 | |
| 10 | $ 32.86 | |||
| 192 | $ 28.70 | |||
Description
General part information
DLC0220BMG
Graphic LCD Display Module Transflective Red, Green, Blue (RGB) TFT - Color Parallel, 18-Bit (RGB), SPI 2.2" (55.88mm) 240 x 320
Documents
Technical documentation and resources
No documents available
