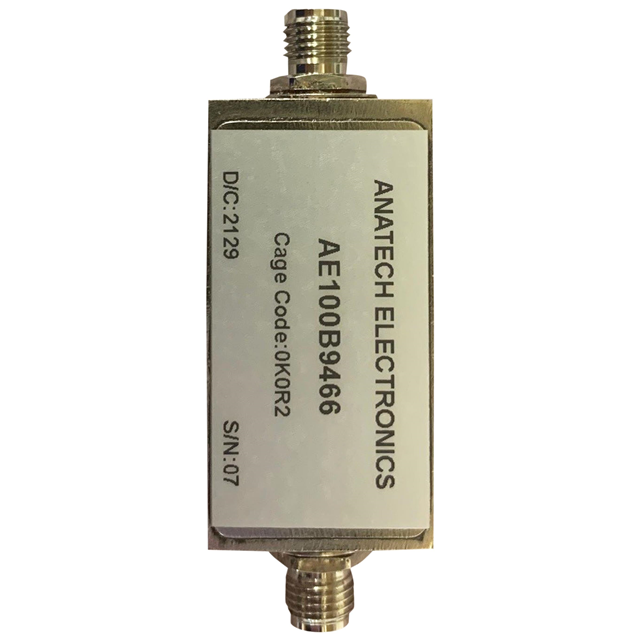

AE100B9466
ActiveAnatech Electronics Inc.
RF FILTER BANDPASS 100MHZ MODULE
Deep-Dive with AI
Search across all available documentation for this part.
AE100B9466
ActiveAnatech Electronics Inc.
RF FILTER BANDPASS 100MHZ MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AE100B9466 |
|---|---|
| Bandwidth | 5 MHz |
| Filter Type | Band Pass |
| Frequency | 100 MHz |
| Height (Max) [Max] | 12.7 mm |
| Height (Max) [Max] | 12.7 mm |
| Insertion Loss | 6 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension [x] | 38.1 mm |
| Size / Dimension [x] | 1.5 in |
| Size / Dimension [y] | 0.75 in |
| Size / Dimension [y] | 19.05 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 457.50 | |
Description
General part information
AE100B9466
100MHz Center Frequency Band Pass RF Filter (Radio Frequency) 5MHz Bandwidth 6dB Module, SMA Connectors
Documents
Technical documentation and resources
No documents available
