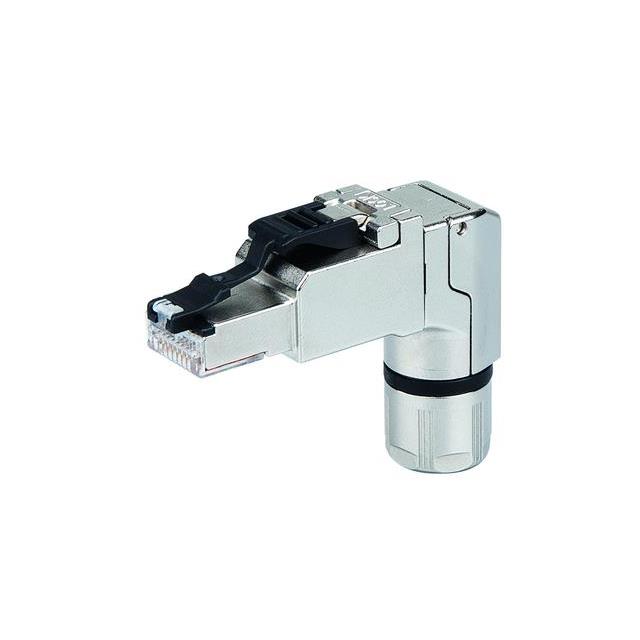

100023069
ActiveTelegartner Inc
MFP8-4X90 T568B C6A D.85-1.1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100023069
ActiveTelegartner Inc
MFP8-4X90 T568B C6A D.85-1.1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023069 |
|---|---|
| Cable Type | Round Cable, Solid, Stranded Wires |
| Color | Black |
| Connector Type | Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 1 A |
| Features | Strain Relief, Locking Hook, Protective Cap |
| Housing Material | Polycarbonate (PC) |
| Length | 45.72 mm |
| Length | 1.8 in |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Ratings | Cat6a |
| Shield Material | Brass |
| Shielding | Shielded |
| Termination | IDC |
| Wire Gauge [Max] | 27 AWG |
| Wire Gauge [Min] | 24 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 10 | $ 28.50 | |
| 20 | $ 26.77 | |||
| 50 | $ 25.48 | |||
| 100 | $ 24.87 | |||
| 250 | $ 23.75 | |||
Description
General part information
100023069
Plug Modular Connector 8p8c (RJ45, Ethernet) Position Shielded Cat6a IDC
