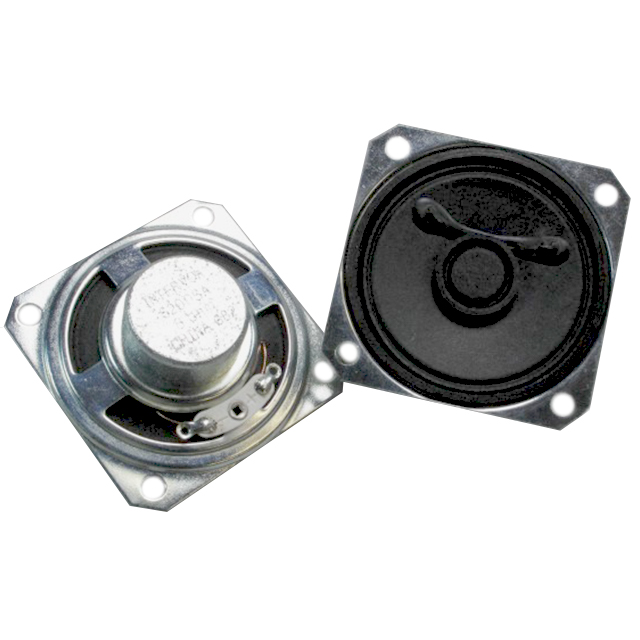

S200SA
ActiveInternational Components Corp.
SPEAKER 8OHM 200MW TOP PORT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S200SA
ActiveInternational Components Corp.
SPEAKER 8OHM 200MW TOP PORT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S200SA |
|---|---|
| Frequency - Self Resonant | 400 Hz |
| Frequency Range [Max] | 3.4 kHz |
| Frequency Range [Min] | 400 Hz |
| Height - Seated (Max) [Max] [z] | 0.701 in |
| Height - Seated (Max) [Max] [z] | 17.8 mm |
| Impedance | 8 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Max [Max] | 500 mW |
| Power - Rated | 200 mW |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 51.7 mm |
| Size / Dimension [x] | 2.035 in |
| Size / Dimension [y] | 51.7 mm |
| Size / Dimension [y] | 2.035 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 2.77 | |
| 600 | $ 2.49 | |||
| 1000 | $ 2.35 | |||
Description
General part information
S200SA
8 Ohms General Purpose Speaker 200 mW 400 Hz ~ 3.4 kHz Top Round, Square Frame
