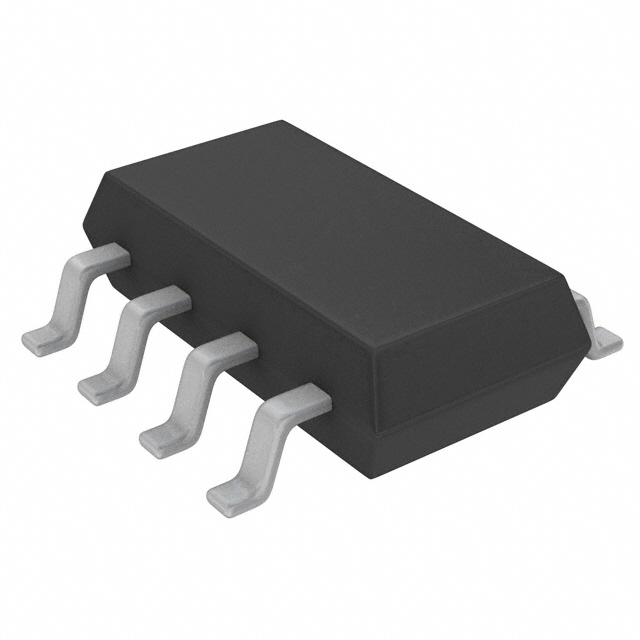

MP1474DJ-LF-Z
MONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 2A TSOT23-8
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP1474DJ-LF-Z
MONOLITHIC POWER SYSTEMS (MPS)
IC REG BUCK ADJ 2A TSOT23-8
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP1474DJ-LF-Z |
|---|---|
| Current - Output | 2 A |
| Frequency - Switching | 500 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Supplier Device Package | TSOT-23-8 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 16 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 13 V |
| Voltage - Output (Min/Fixed) | 0.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.94 | |
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 0.95 | |||
| Digi-Reel® | 1 | $ 1.94 | ||
| 10 | $ 1.74 | |||
| 25 | $ 1.64 | |||
| 100 | $ 1.40 | |||
| 250 | $ 1.31 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 0.95 | |||
| Tape & Reel (TR) | 3000 | $ 0.90 | ||
Description
General part information
MP1474DJ-LF-Z
Wide 4.5V-to-16V Operating Input Range
100m?/40m? Low RDS(ON) Internal PowerMOSFETs
High-Efficiency Synchronous Mode Operation
