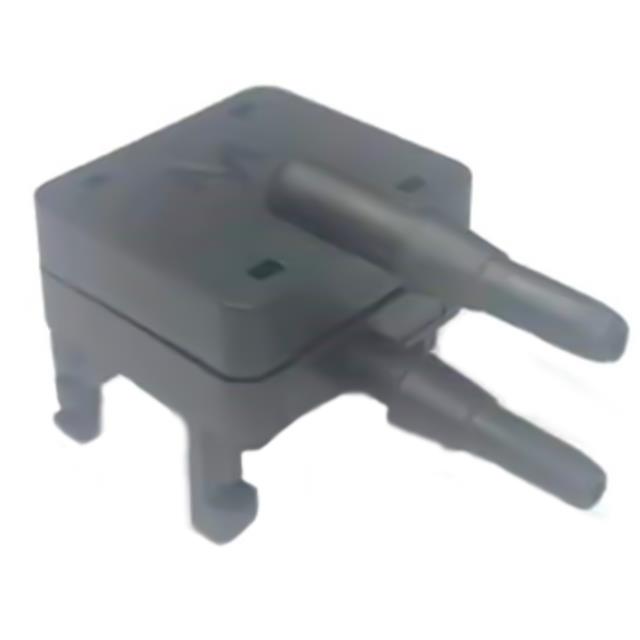

MCT-2A 001PB51
ActiveAdvanced Sensor Design
SENSOR 0.018PSID 0.2" 4.5V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MCT-2A 001PB51 |
|---|---|
| Accuracy | 1 % |
| Applications | Board Mount |
| Features | Temperature Compensated, Amplified Output |
| Maximum Pressure [Max] | 10 PSI |
| Maximum Pressure [Max] | 68.95 kPa |
| Operating Pressure [Max] | 0.018 PSI |
| Operating Pressure [Max] | 0.12 kPa |
| Operating Pressure [Min] | -0.018 PSI |
| Operating Pressure [Min] | -0.12 kPa |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 4.5 V |
| Output [Min] | 0.5 V |
| Output Type | Analog Voltage |
| Package / Case | Module |
| Port Size | Dual, Tube, Male |
| Port Size | 5 mm |
| Port Size | 0.2 " |
| Port Style | Barbed |
| Pressure Type | Differential |
| Termination Style | PC Pin |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 48.00 | |
Description
General part information
MCT-2A 001PB51
Pressure Sensor -0.018PSI ~ 0.018PSI (-0.12kPa ~ 0.12kPa) Differential Male - 0.2" (5mm) Tube, Dual 0.5 V ~ 4.5 V Module
